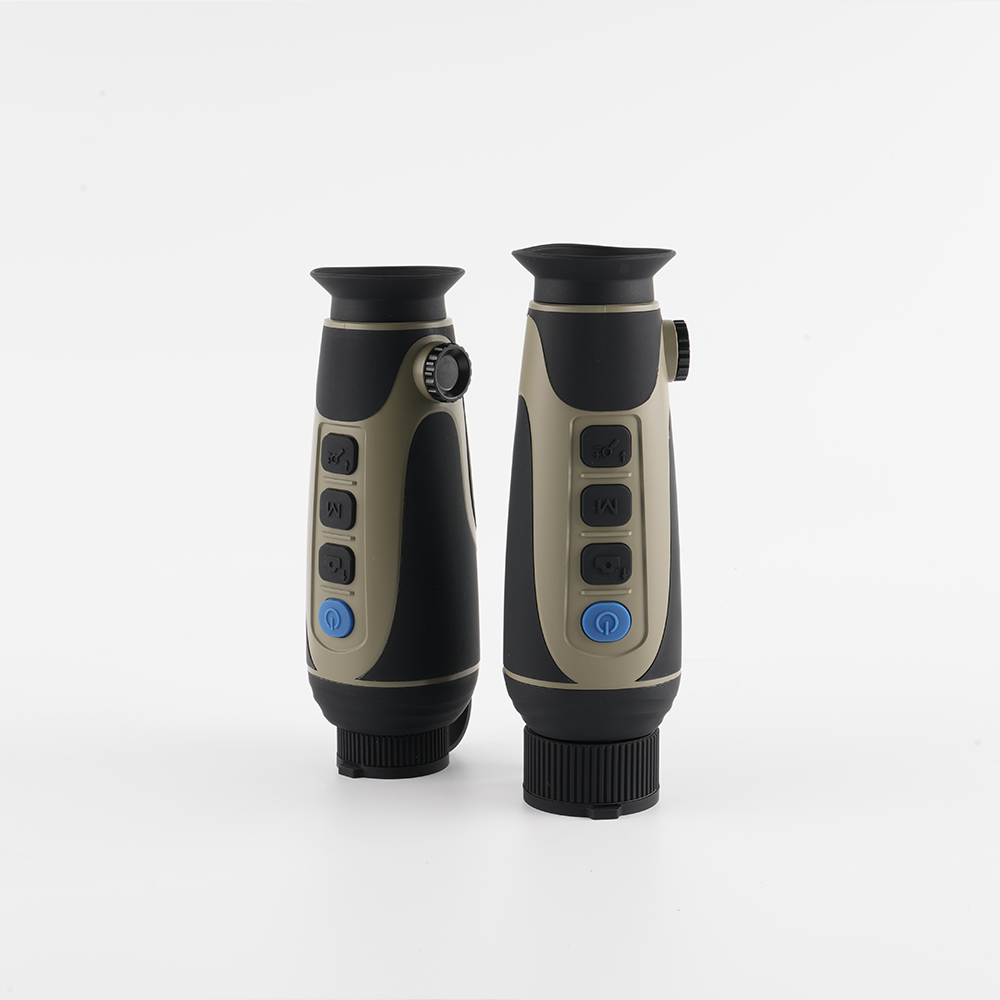

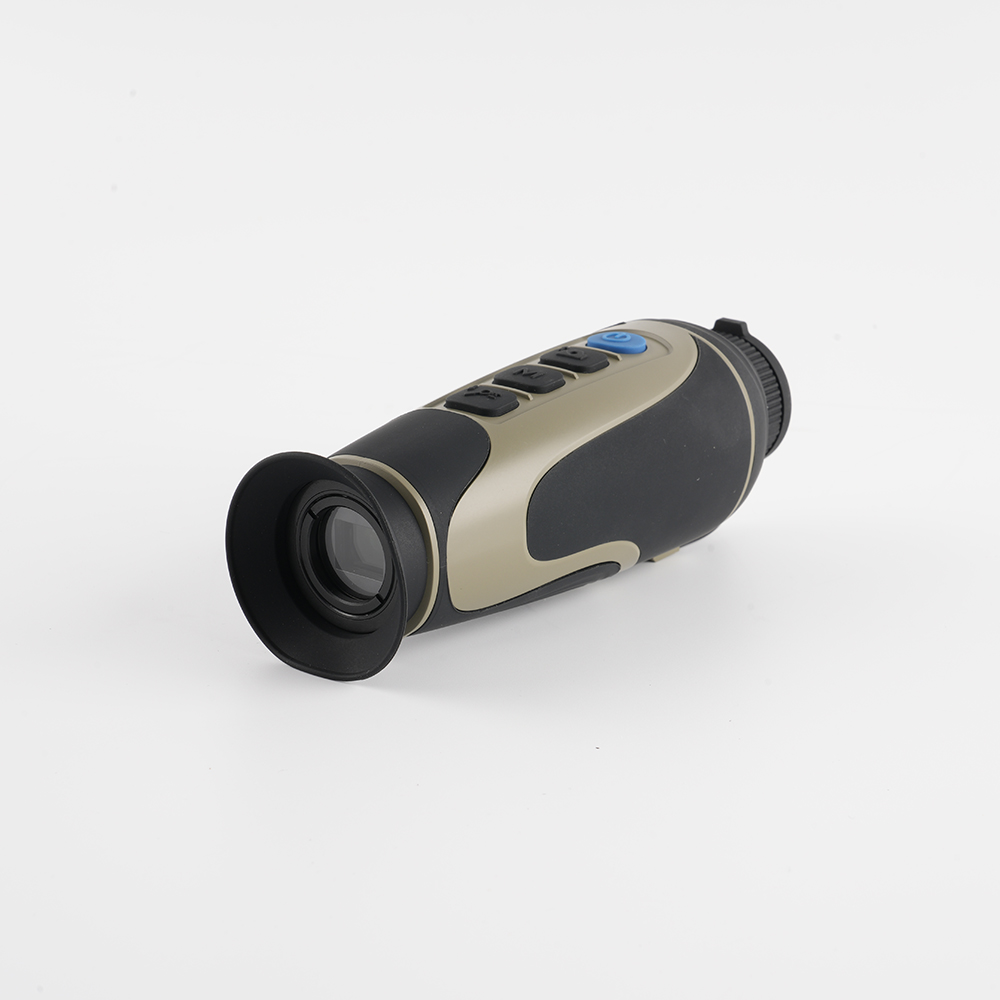

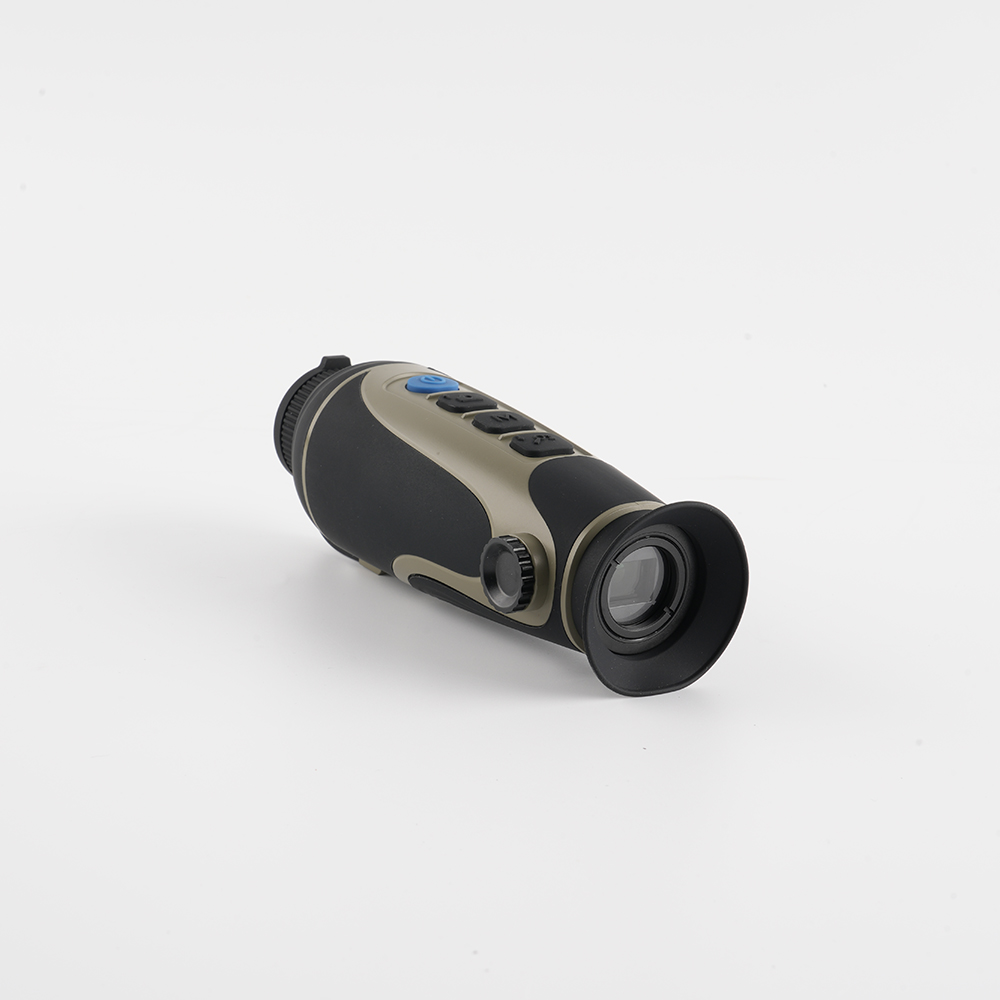

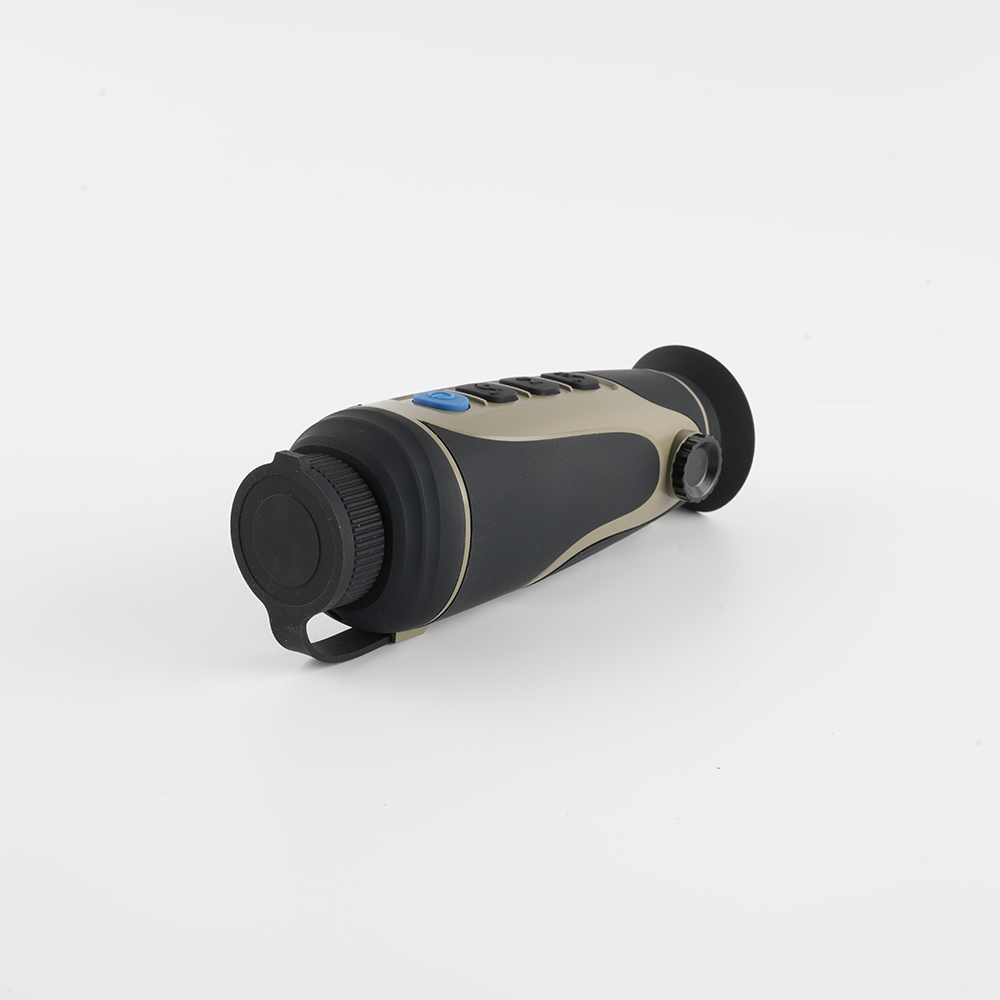

Longot XM3 | Monocular handheld thermal imager
Handheld thermal imager

XM3

Handheld thermal imager

This is a product with an IP67 water resistance level, supporting functions such as taking photos and videos, and hot spot tracking.
    ·12um detector;
    ·50Hz high frame rate;

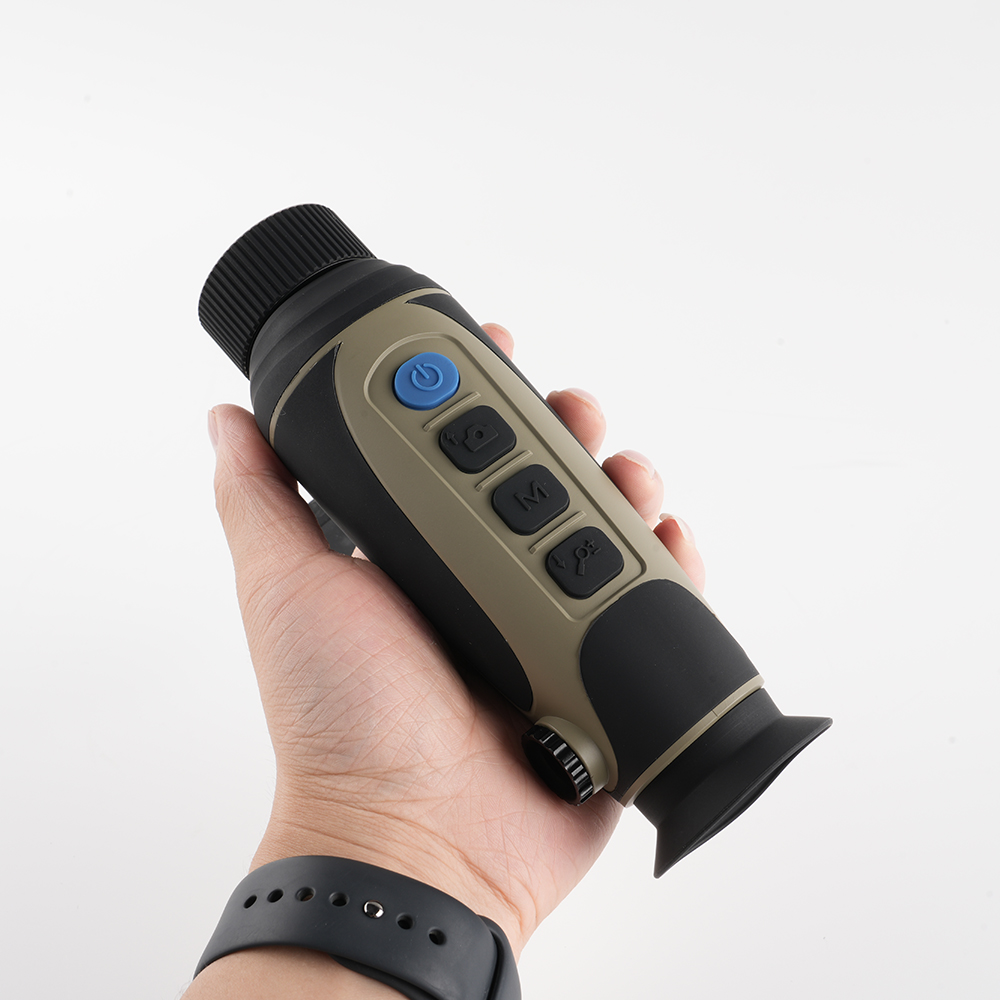

    · Compact in size and easy to carry;
    · The operation interface is convenient;
    · Supports taking photos and recording videos;
SERVICE & SUPPORT   |    CONTACT US

Characteristics

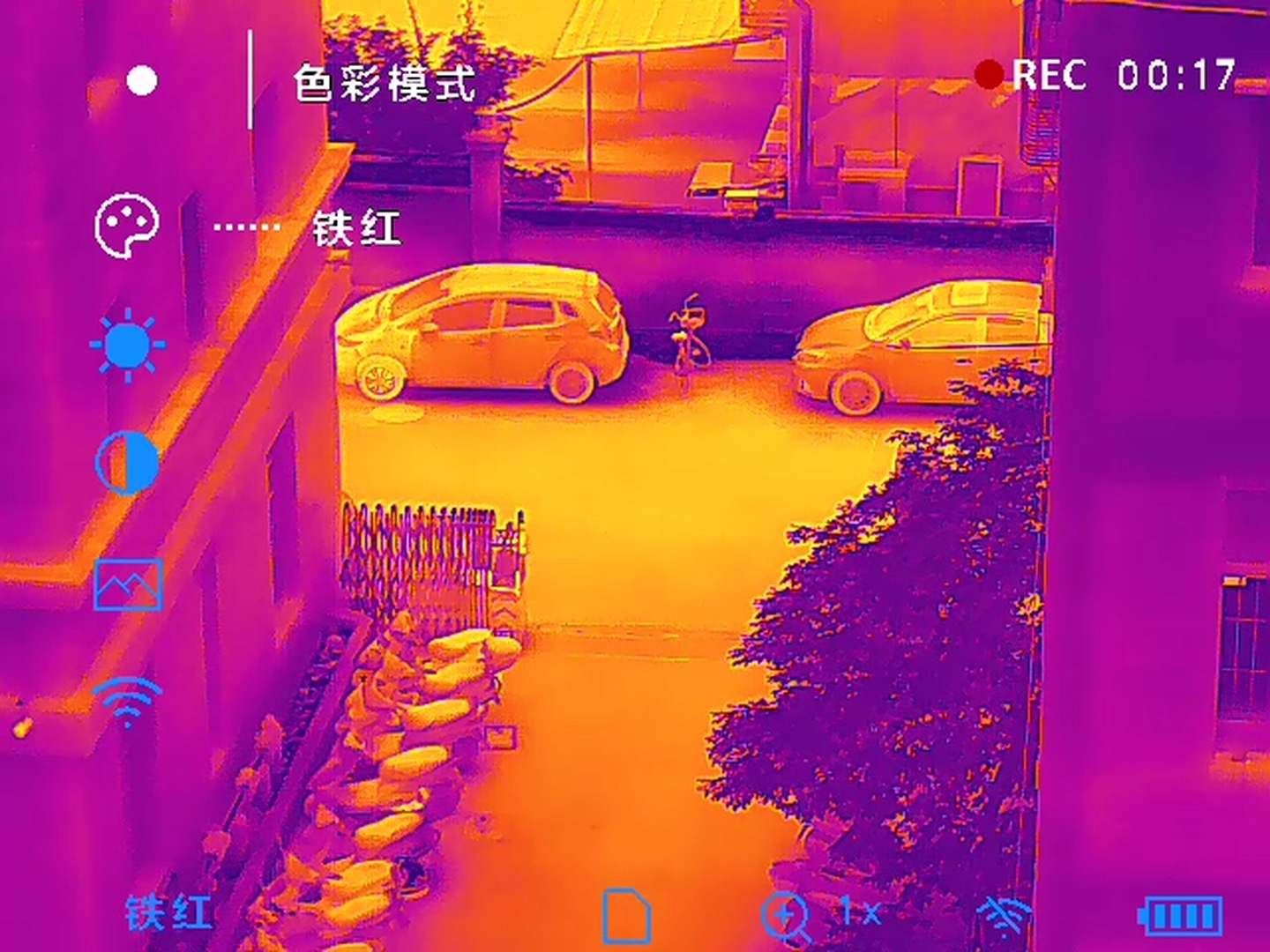

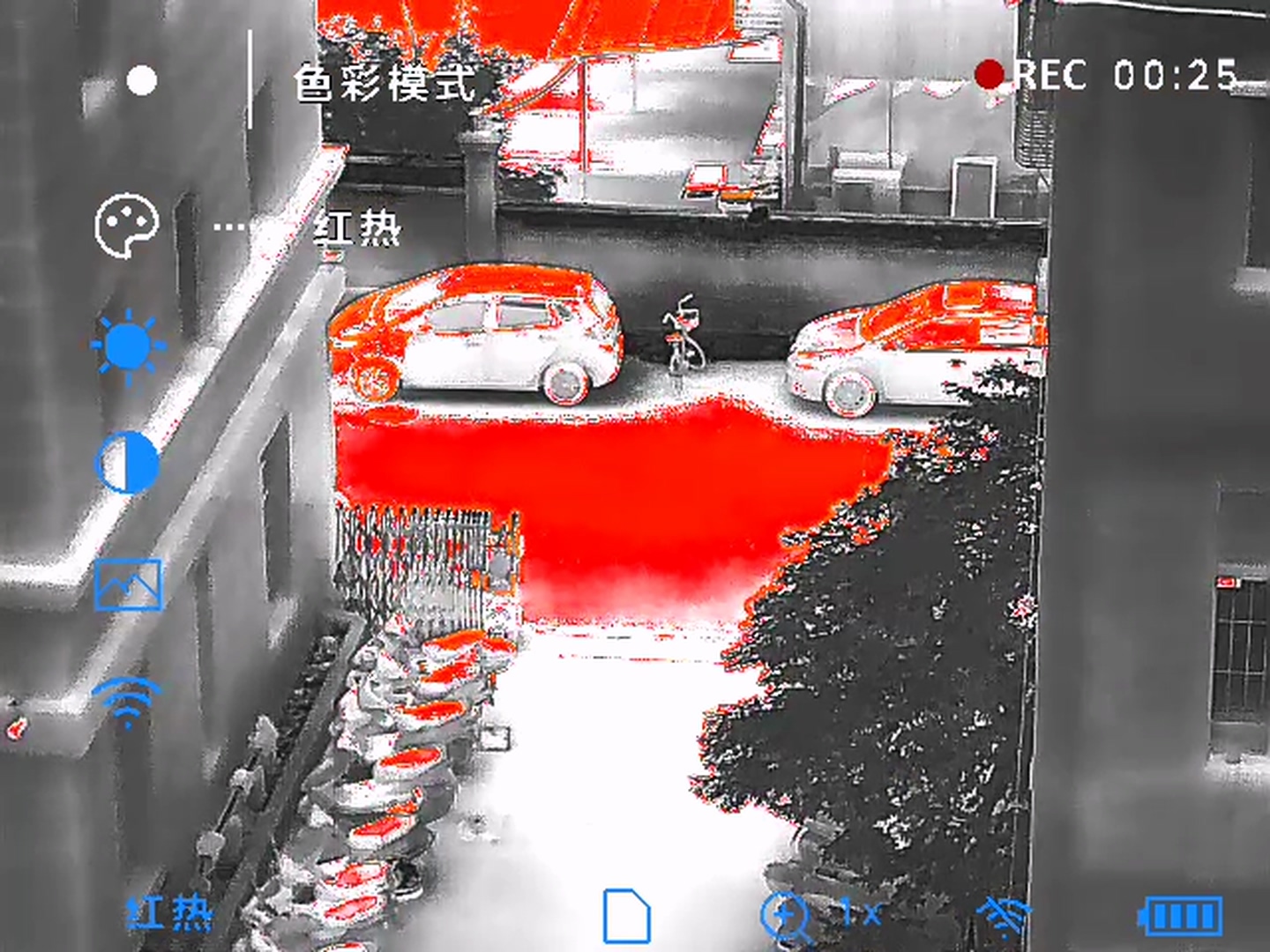

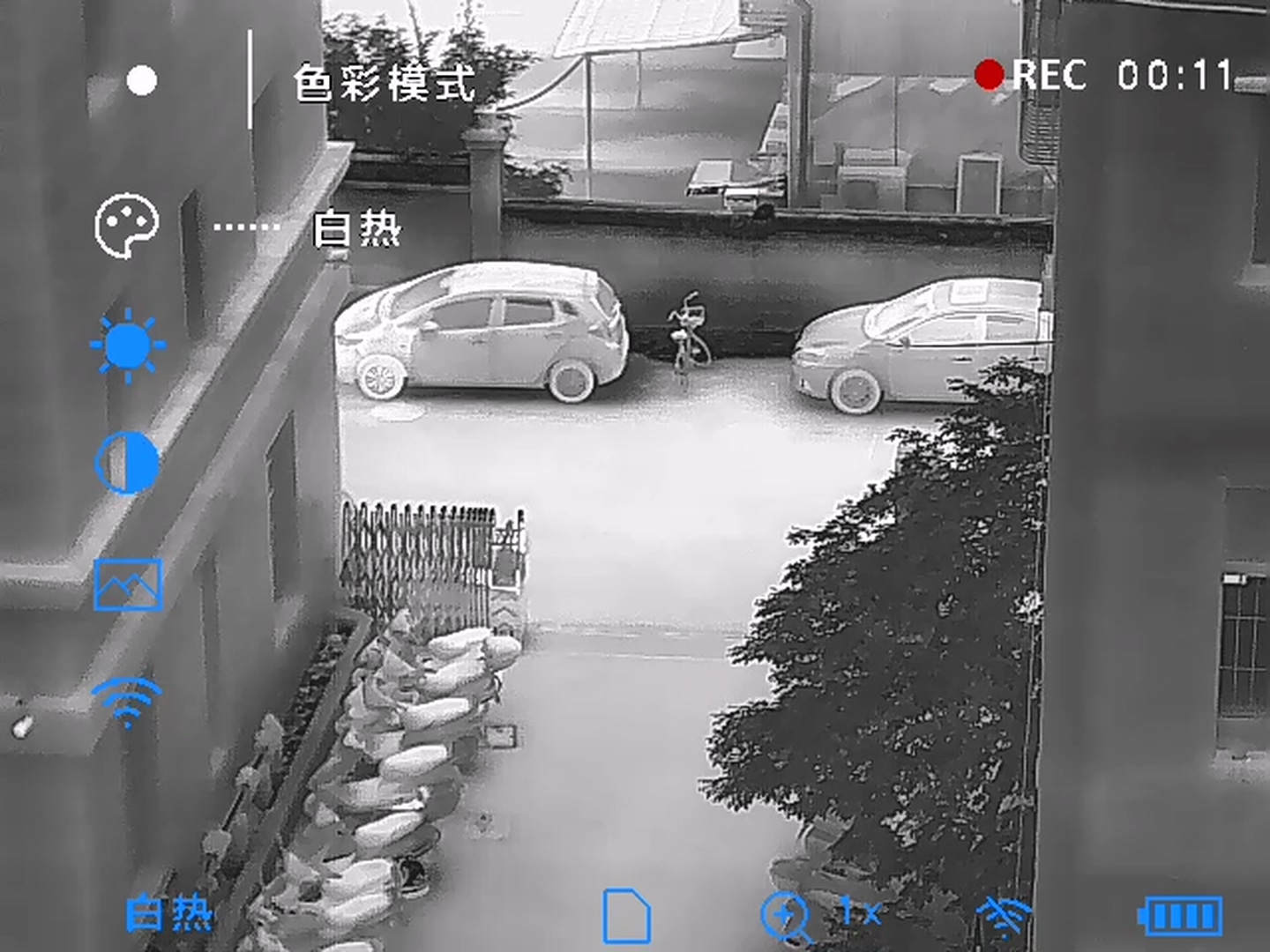

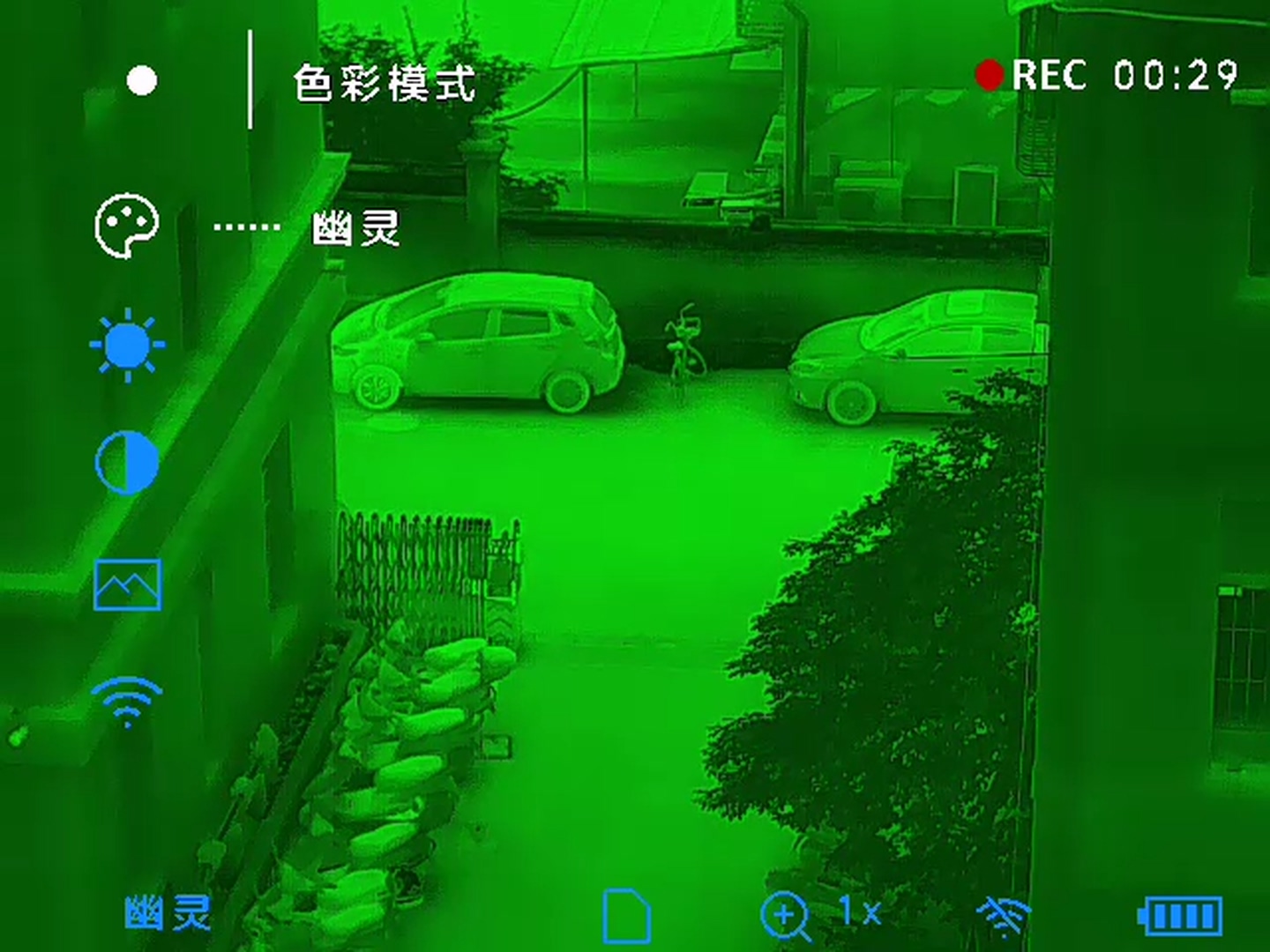

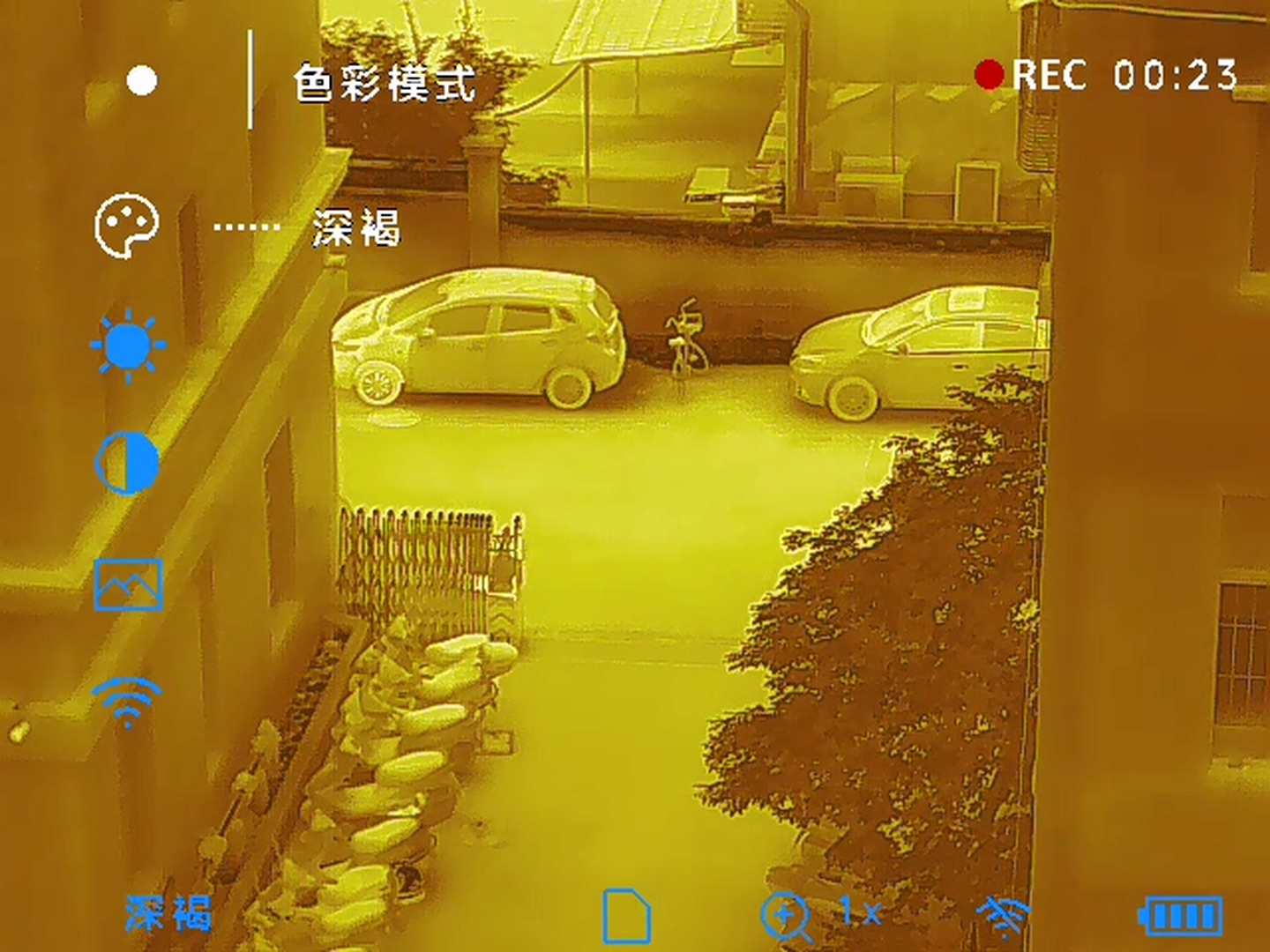

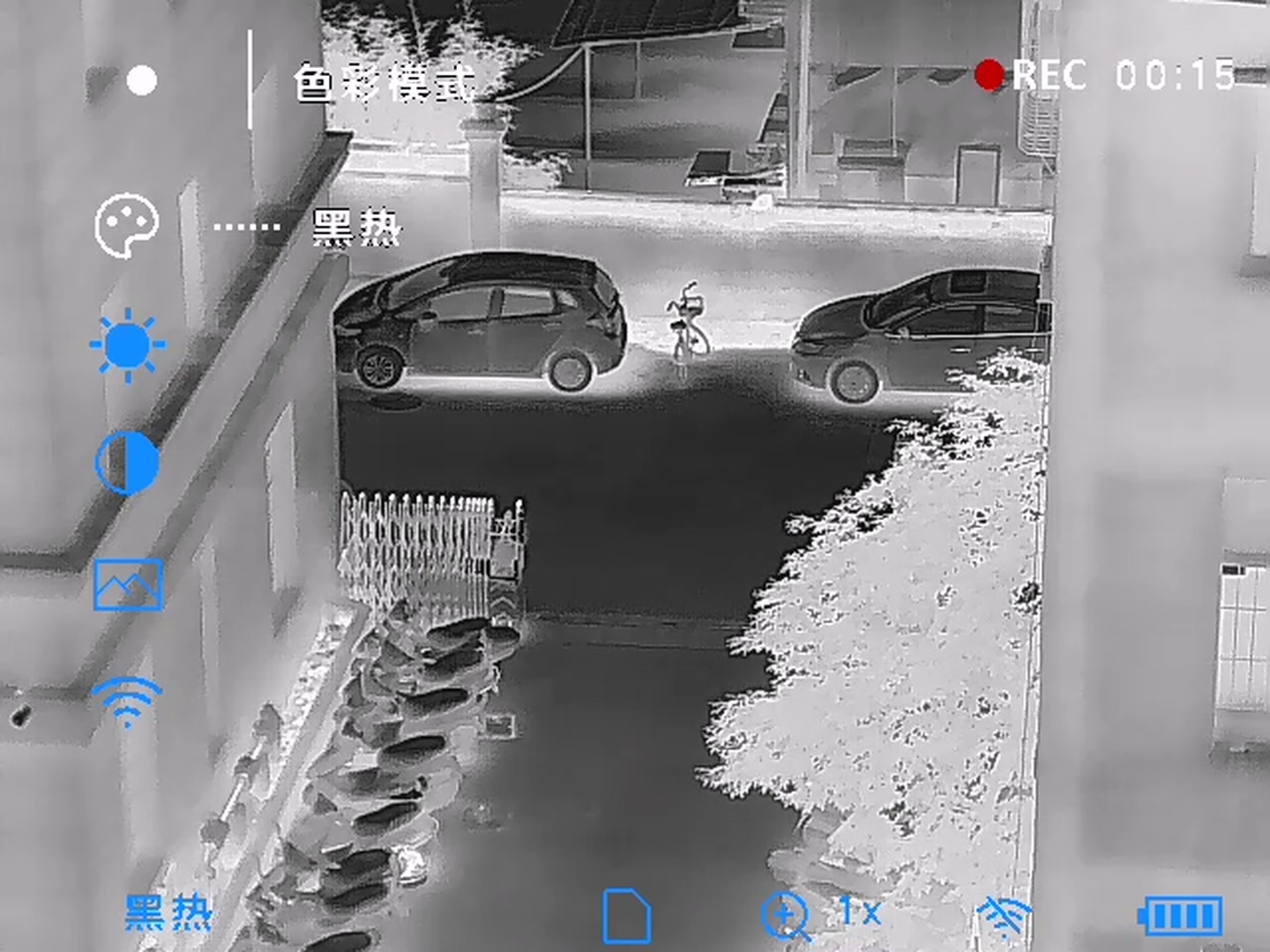

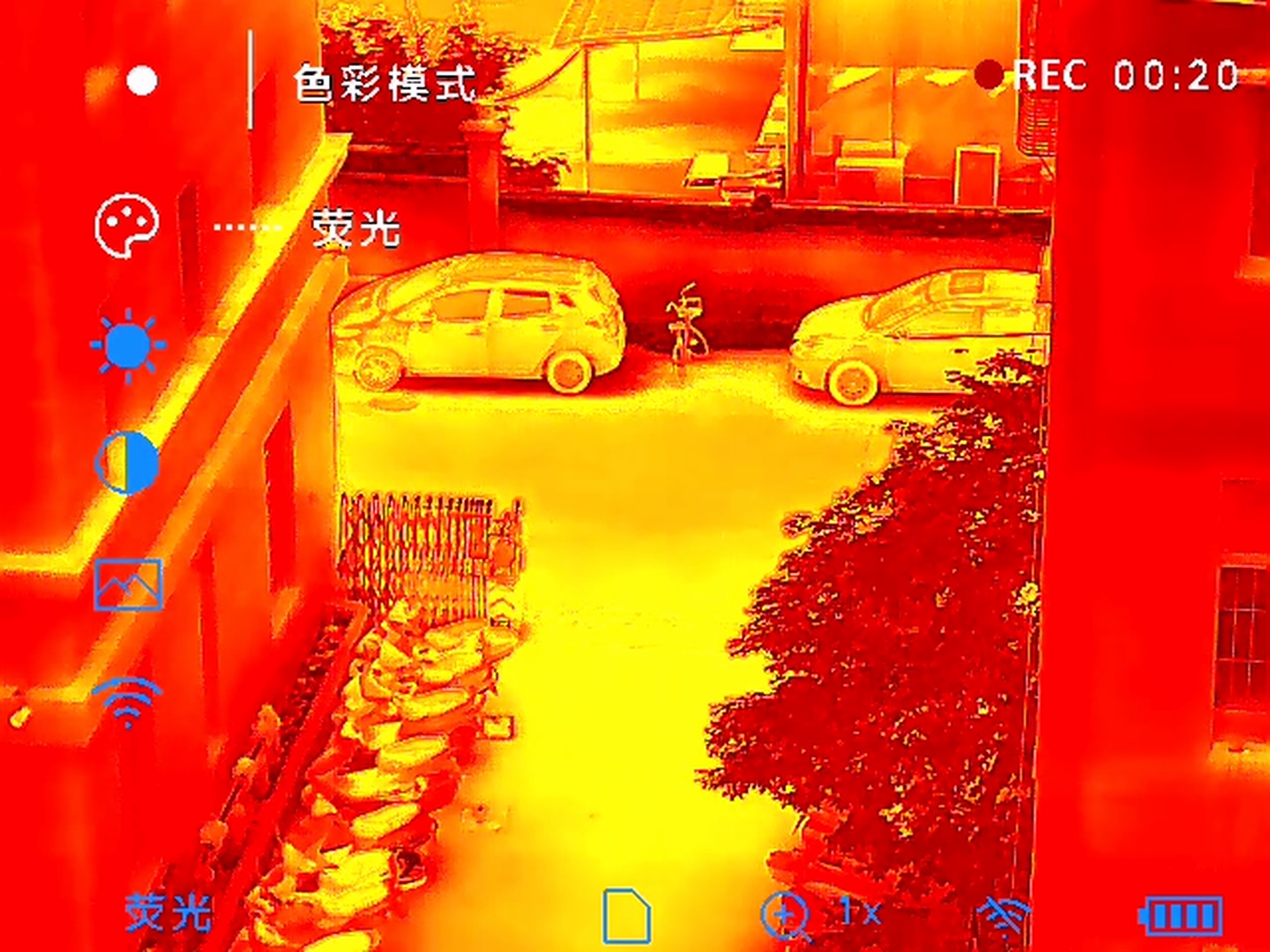

White Hot, Black Hot, Iron Red, Fluorescent, Dark Brown, Red Hot, Ghost.
The XM series is equipped with a built-in laser function and can perform laser indication.
When the target moves or the background changes, the hot spot tracking function can also continuously lock onto the target, helping users better discover and track the target.

Specification


Model
XM3
Detector TypeVOX
Resolution, Pixel384×288
Pixel Size, μm12μm
NETD, mK≤30mk
Frame Rate, Hz50Hz
Optical Characteristics
Objective lens, mm15mm
Magnification, x1.4×
Digital zoom, x1x、2x、4x
Min Focus Distance, M5m
Exit pupil distance, mm13 mm
Exit pupil Diameter, mm6 mm
Field of View (H × V), degree17.5°×13.1°
Diopter, D-7D~+2D
Detection distance, m (Target size :1.7 m×0.5 m)800 m
Detection distance, m (Vehicle :2.3 m×2.3 m)1500 m
Electrical Characteristics
Display TypeOLED
Resolution, pixels640×480
WiFi Frequency,GHz2.4GHz
Video/Photo fomatmp4/jpg
Built-in memory，GB32 G
Power Supply，V3~4.2V
Battery type*QTY/Capacity, mA18650 Battery x 1 / 3200mAh
External power supply，V5V2A
Others Characteristics
Operating time (at t=22℃）, hours>7hrs
Operating temperature, ℃-20℃~+50℃
Storage temperature, ℃-40℃~+60℃
Body materialPlastic + silicone
Degree of protection, IP code (IEC60529)IP67
Dimension（L*W*H), mm/inch

172mm*58.5mm*62mm/6.77in*2.30in*2.44in

Weight(without battery), g/oz345g/12.17oz
