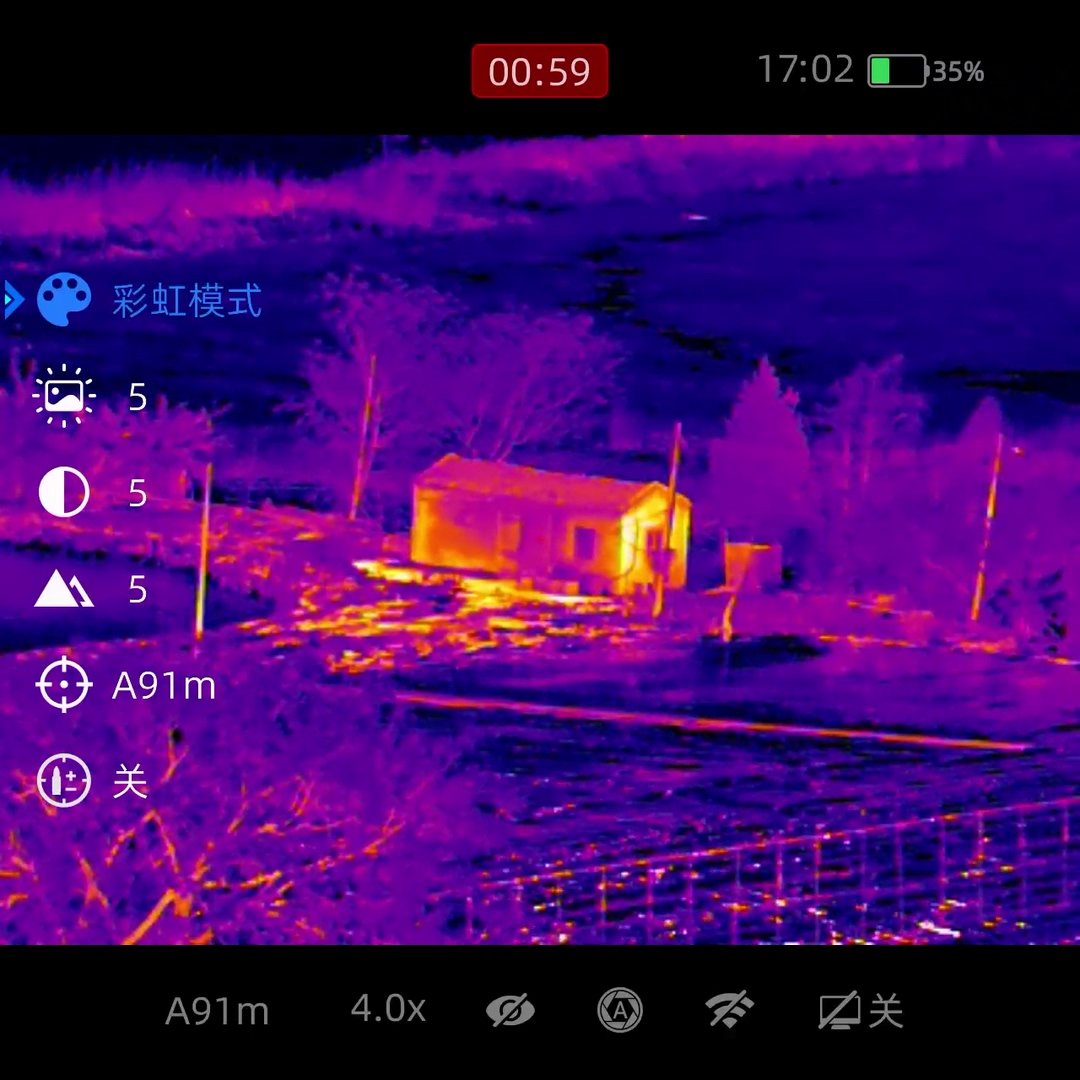

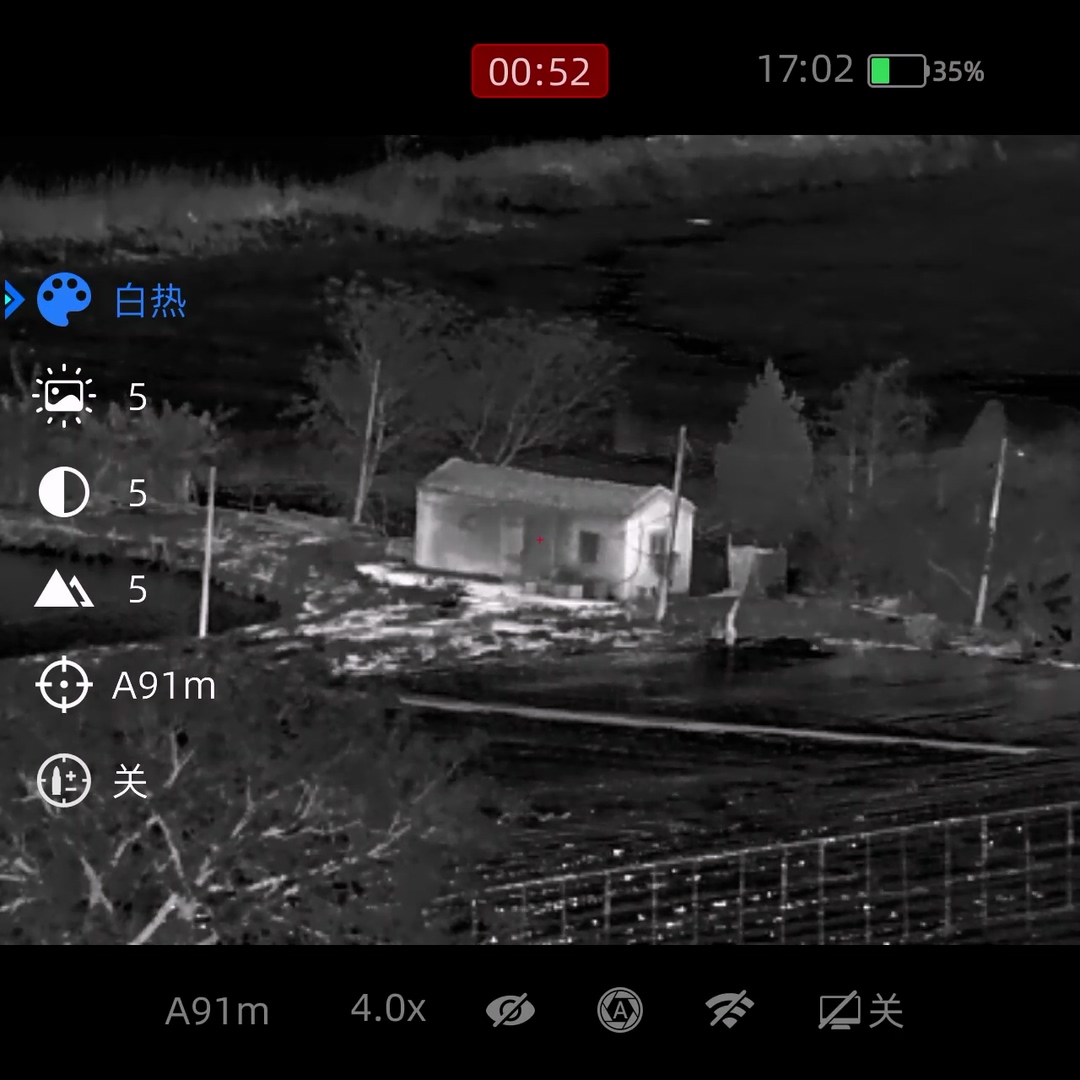

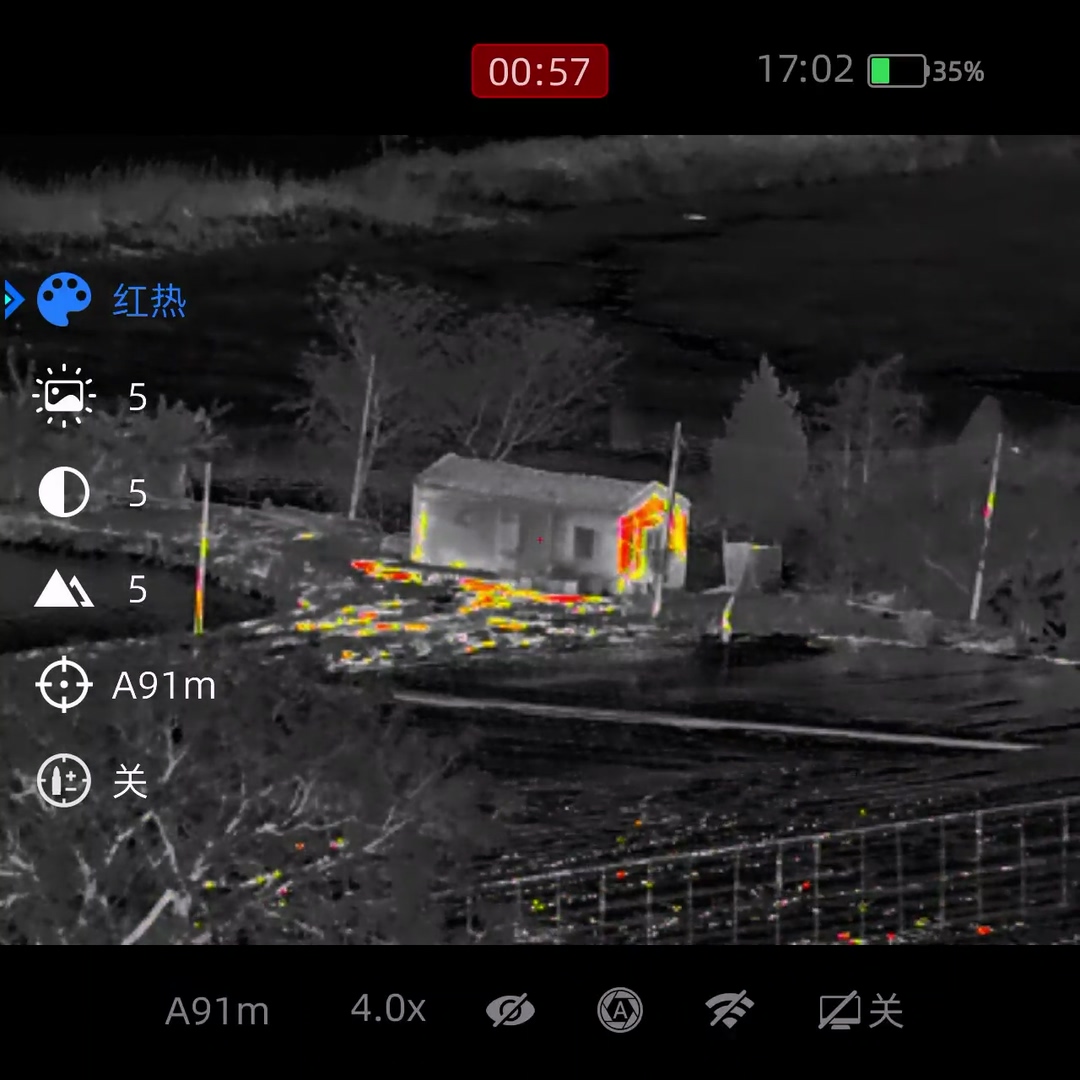

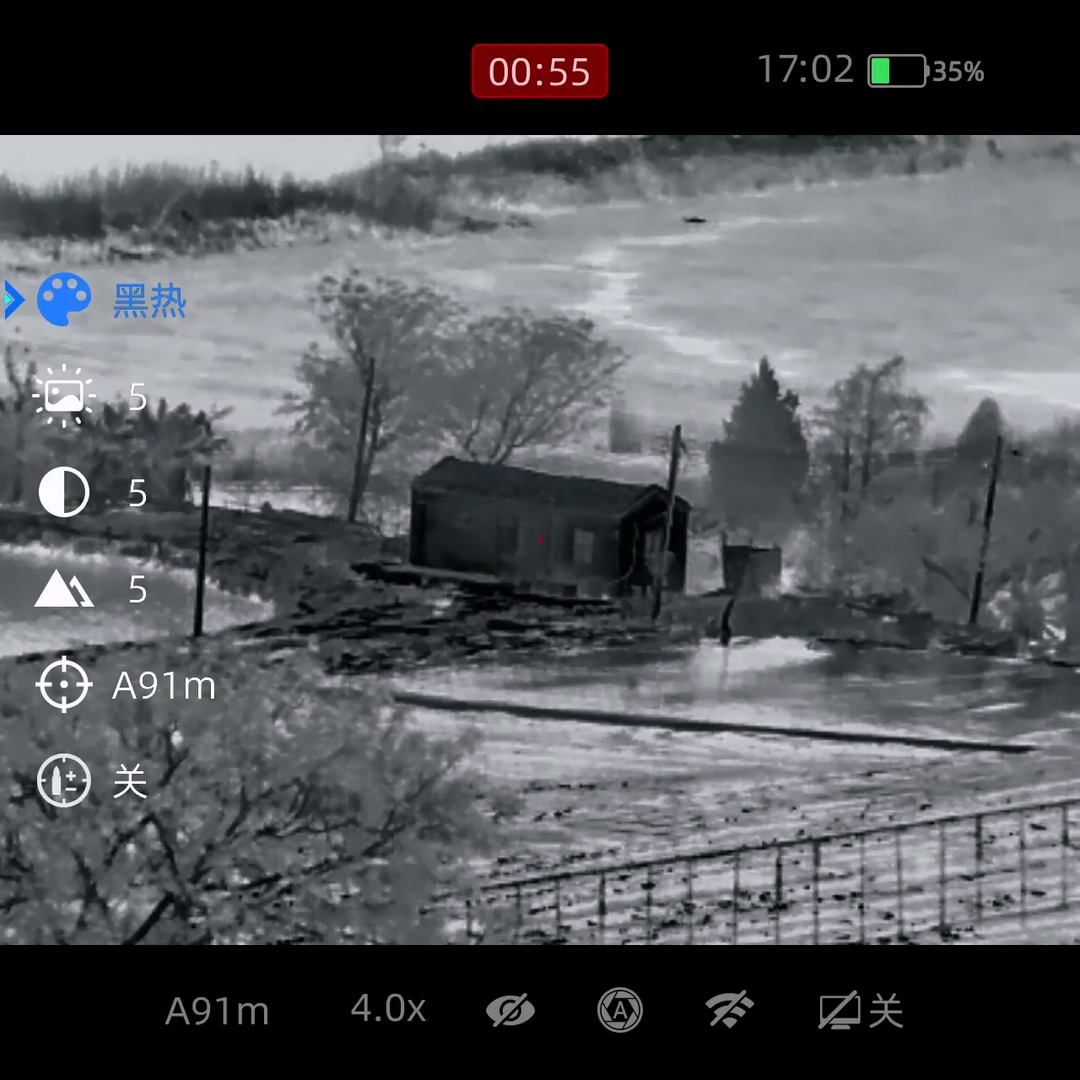

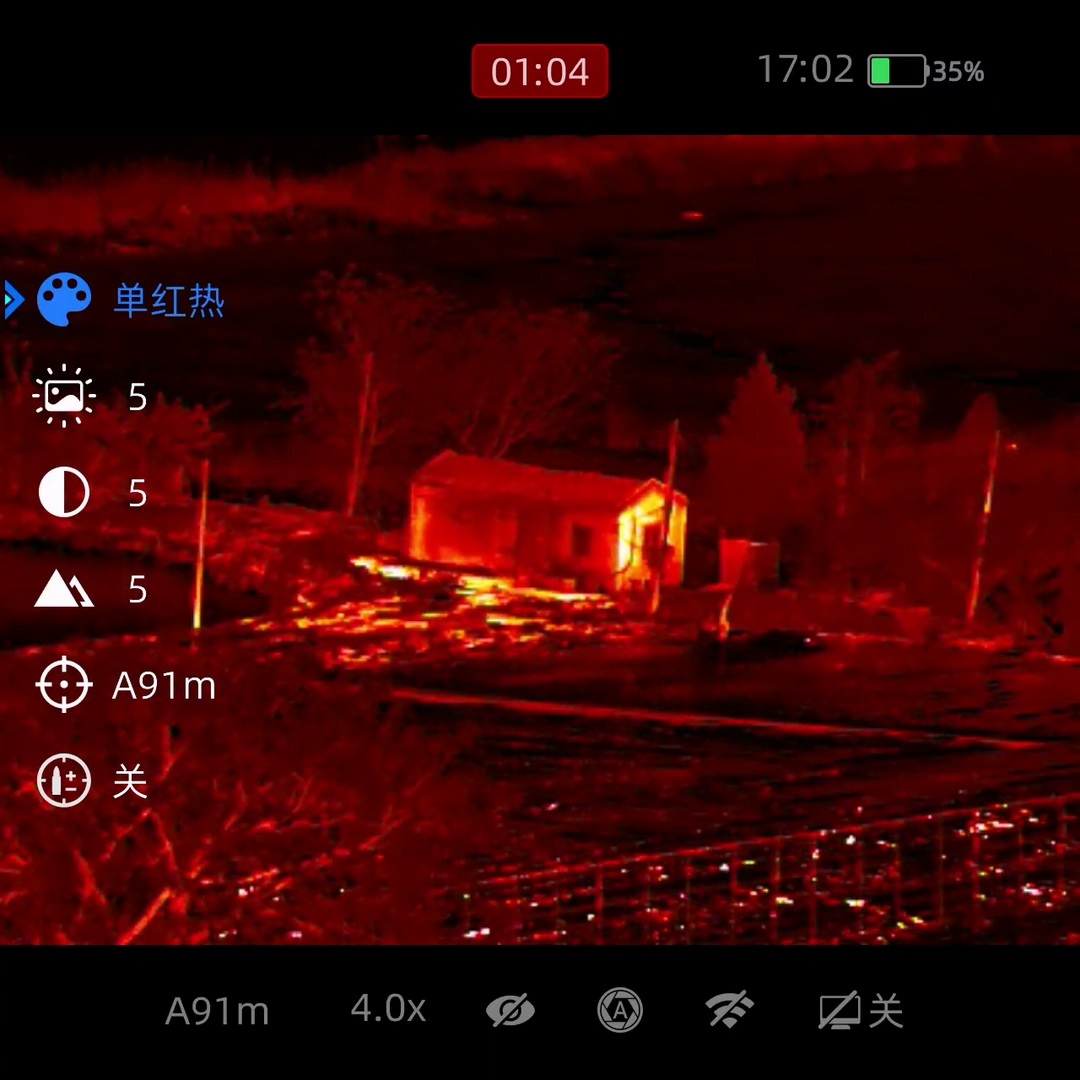

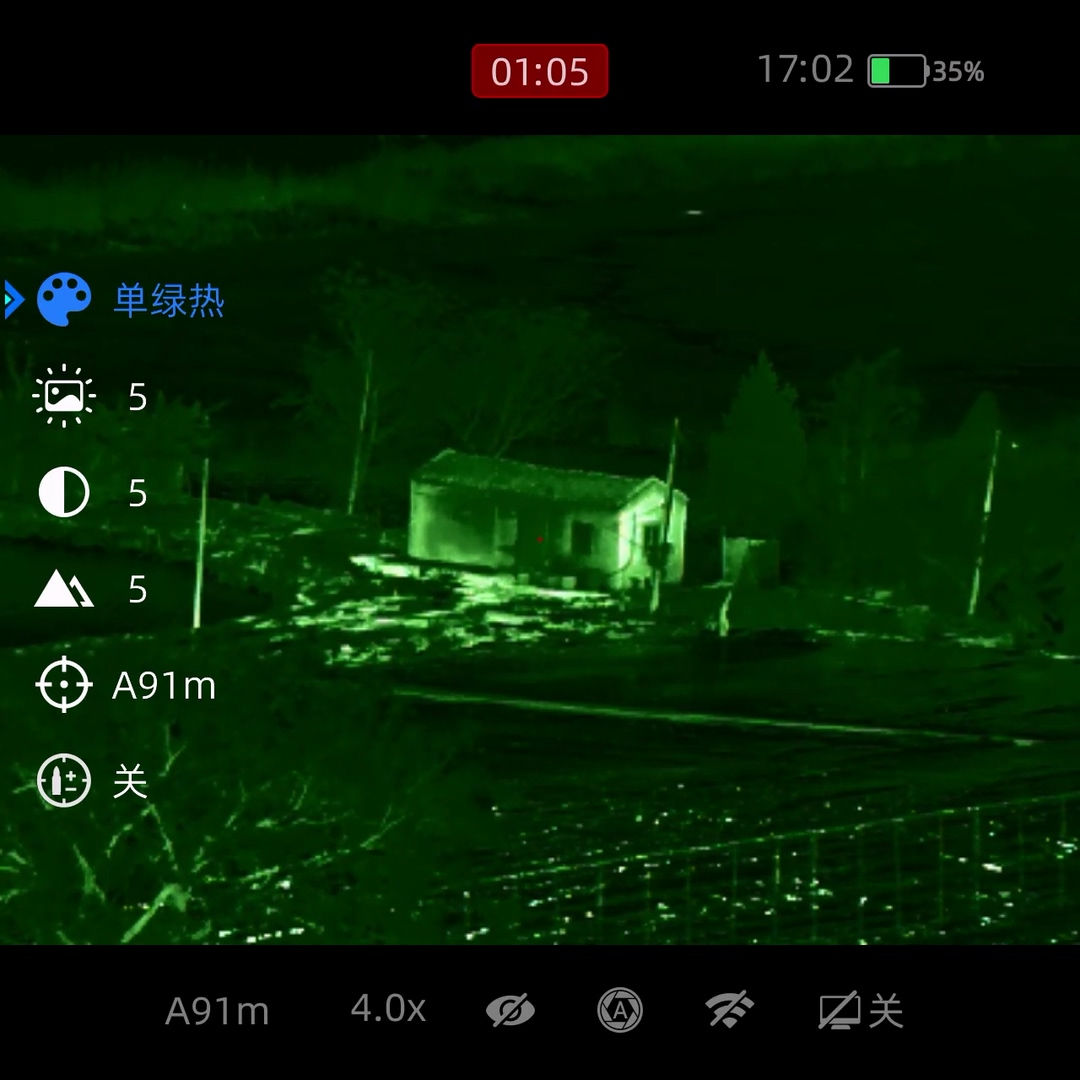

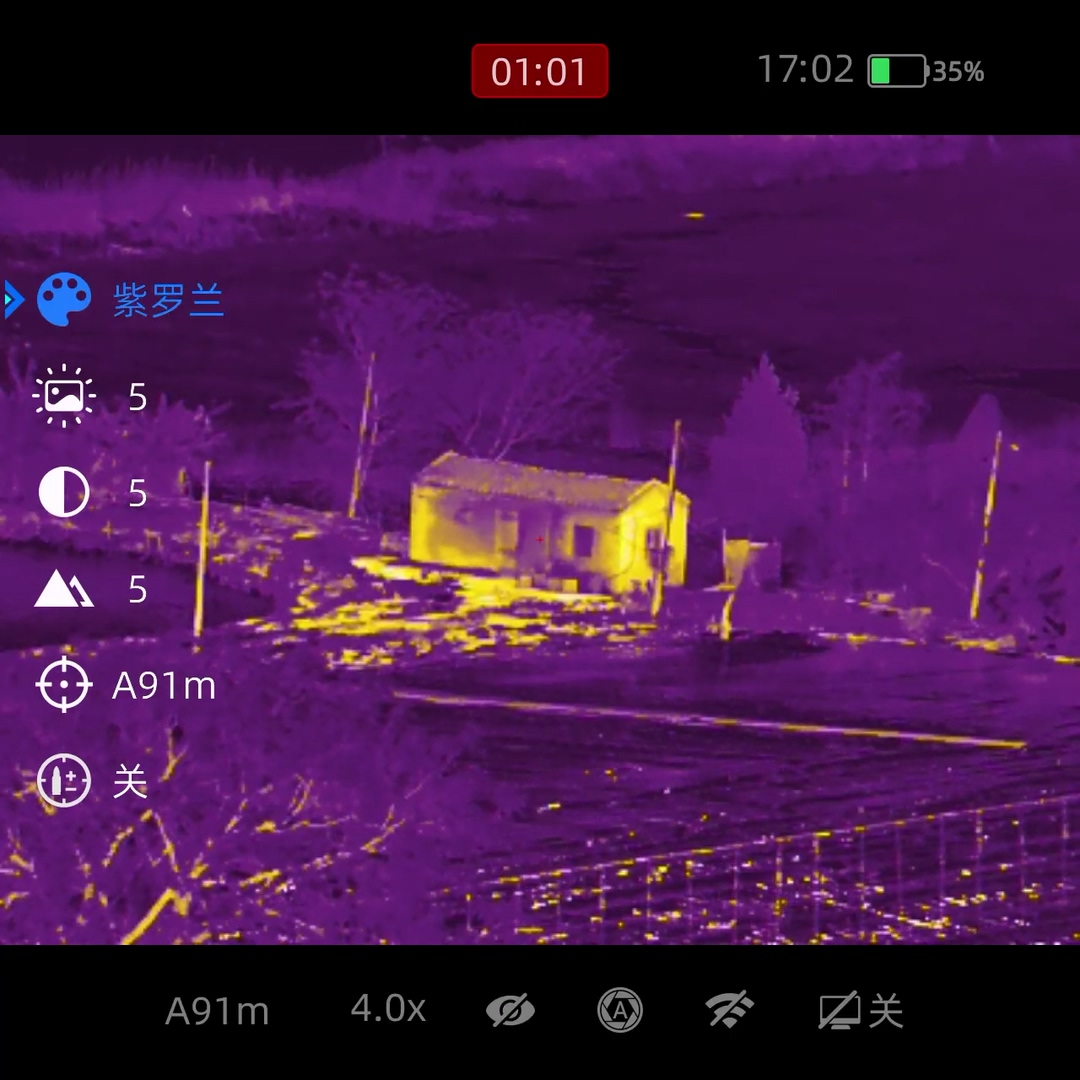

Demonstrate
Specification
| Model | TR42L |
| Detector Type | VOX |
| Resolution, Pixel | 384×288 |
| Pixel Size, μm | 12 μm |
| NETD, mK | ≤18mk |
| Frame Rate, Hz | 60 hz |
| Optical Characteristics | |
| Objective lens, mm | 42 mm |
| Magnification, x | 4x |
| Digital zoom, x | 4x-16x stepless zoom, step 0.1x-0.4x |
| Min Focus Distance, M | 5 m |
| Exit pupil distance, mm | 60 mm |
| Exit pupil Diameter, mm | 23 mm |
| Field of View (H × V), degree | 6.3°×4.7° |
| Diopter, D | -5D~+5D |
| Detection Range, m (Target size: 1.7m×0.5m) | 2197 m |
| Detection Range, m (Verhicle) | 4000 m |
| Rangefinder Characteristics | |
| Wavelength,nm | 905nm |
| Measuring Range,M | 1200m |
| Measurement accuracy,m | ±1m |
| Electrical Characteristics | |
| Display Type | AMOLED |
| Resolution, pixels | 2560×2560 |
| WiFi Frequency,GHz | 2.4 GHz |
| Video/Photo fomat | MP4/JPG |
| Built-in memory，GB | 32 GB |
| Power Supply，V | 3~4.2V |
| Battery type*QTY/Capacity, mA | Lithium-ion battery pack IBP-5 / 4400mAh |
| External power supply，V | 5V2A |
| Others Characteristics | |
| Operating time (at t=22℃）, hours | ≥5.5h |
| Operation temperature, ℃ | -20℃~+50℃ |
| Storage temperature, ℃ | -30℃~+60℃ |
| Body material | Magnesium-aluminum alloy |
| Degree of protection, IP code (IEC60529) | IP67 |
| Seismic coefficient, joules | 1000g/ms |
| Dimension（L*W*H), mm/inch | 296mm*78mm*76mm |
| Weight(without battery), g/oz | 900g |
