ST60L


High-end thermal imaging aiming


ST60L

    • 15mK NETD
    • Ocular zoom
    • Built-in LRF
    • Ballistic Calculation
    • Recoil Activated Video function
    • Gallery function
    • Dual power supply system
    • Built-in memory, supporting photographing, video recording
    • Built-in Wi-Fi module, supporting APP connection
    • Built-in compass and motion sensor
    • PIP (picture-in-picture) function
    • Shut less function
    • Pixel defect correction
    • Convenient operation interface



Characteristics

Featuring an ultra-low 15mK Noise Equivalent Temperature Difference, this thermal sensor delivers extremely high thermal sensitivity. It accurately captures tiny temperature differences in complex environments such as dense fog, rain, darkness, and dense foliage. It provides ultra-clear, fine-grained thermal images and enables early detection of hidden heat sources at long distances.

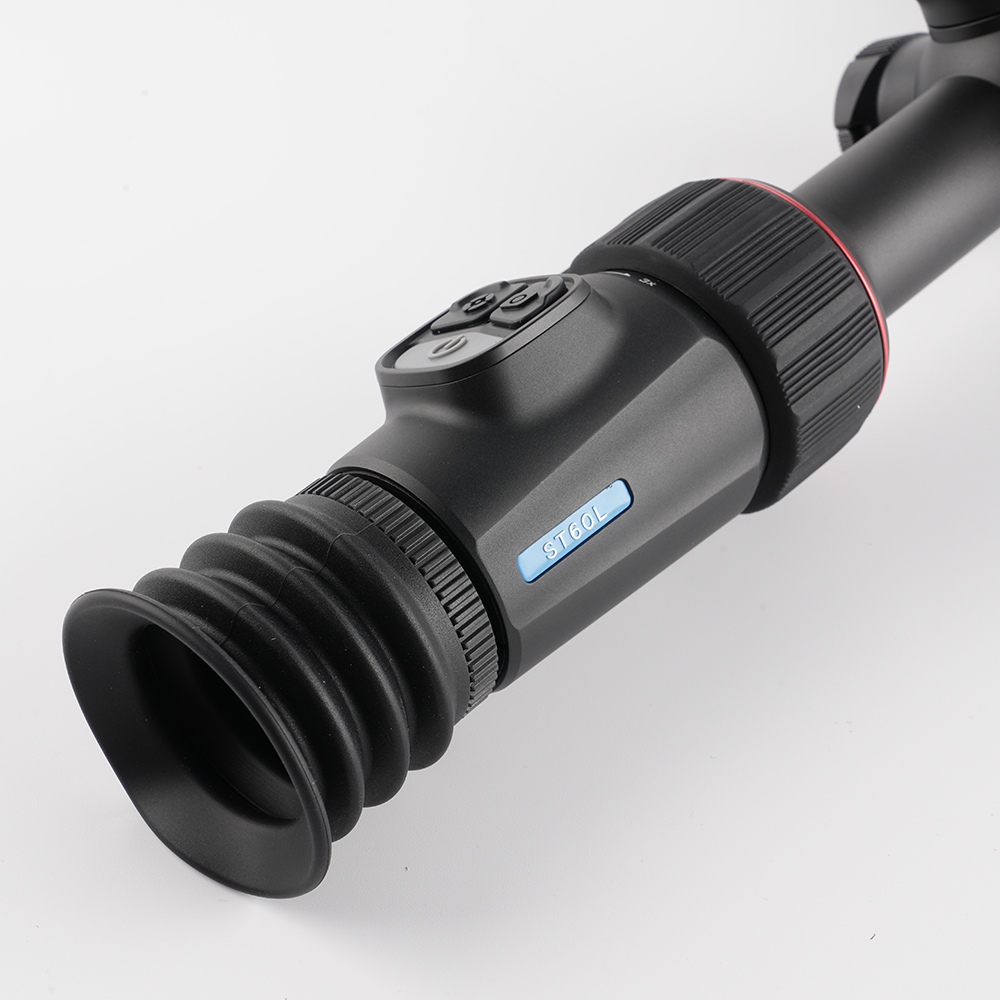

Supports adjustable eyepiece zoom for flexible magnification control. Users can smoothly zoom in for precise target observation or zoom out for a wide field-of-view patrol. The ocular zoom adapts to different observation distances and offers comfortable, customized viewing experience.
Integrated high-precision laser rangefinder eliminates the need for external accessories. It provides fast, accurate, and real-time distance measurement for targets. Stable ranging performance ensures reliable distance data for long-range aiming and shooting scenarios.
Equipped with a professional ballistic calculation system. The device automatically computes and compensates for ballistic drop and wind drift based on real-time distance and internal algorithm. It effectively improves long-range shooting accuracy and provides precise aiming compensation for different shooting environments.
Built-in smart recoil sensing module automatically triggers video recording once a shot is fired. It perfectly captures the entire shooting process without manual operation. This function is ideal for shooting review, effect recording, and post-analysis of every shot.
Independent local gallery system classifies and stores all captured photos and videos. Users can preview, browse, and manage recorded files directly on the device anytime, offering convenient local media management.
Adopts a dual power supply solution with support for built-in battery power and external power input. The dual-power design greatly extends working hours, ensures stable power supply during long-time outdoor operations, and effectively avoids power failure in field use.
Comes with built-in storage, supporting real-time photo capturing and high-definition video recording without extra memory cards. It allows users to record thermal imaging scenes, target observation processes and field data conveniently.
Built-in Wi-Fi wireless module supports connection with dedicated mobile APP. It realizes real-time image transmission, wireless file export, remote parameter setting and live screen sharing, making intelligent control and data transmission more efficient.
Integrated electronic compass and high-precision motion sensor provide real-time directional information and attitude sensing data. It assists users in judging azimuth and working posture, improving overall outdoor situational awareness.

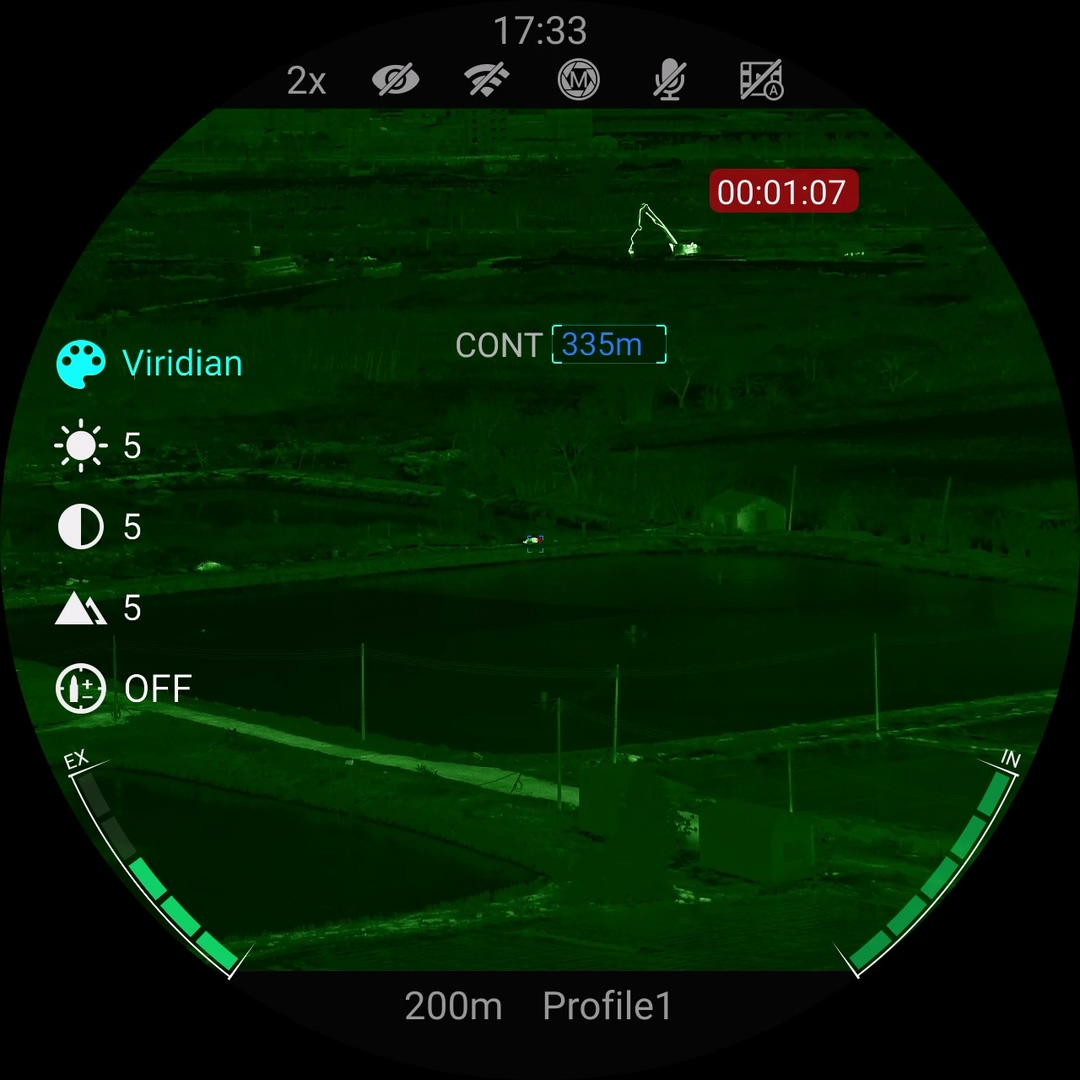

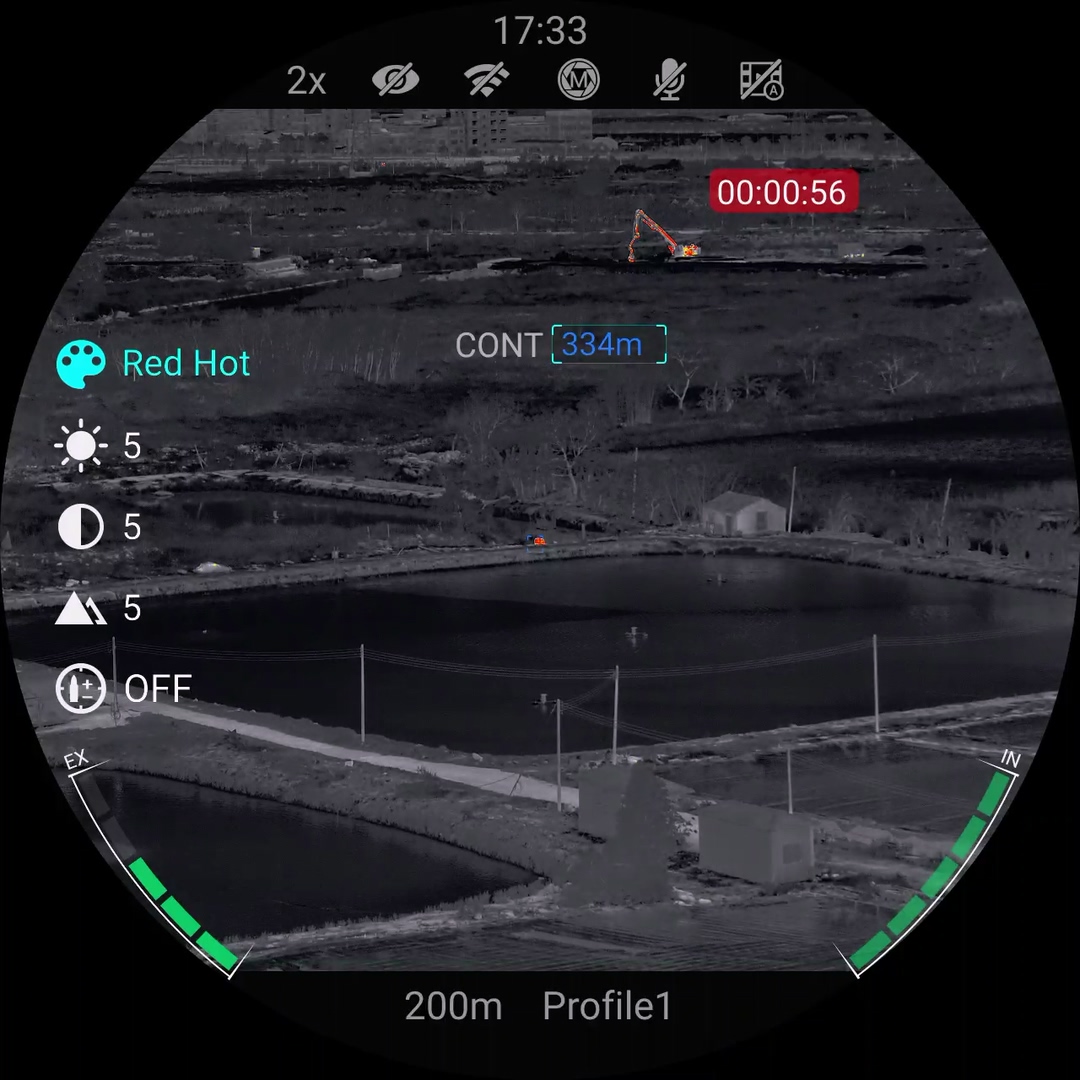

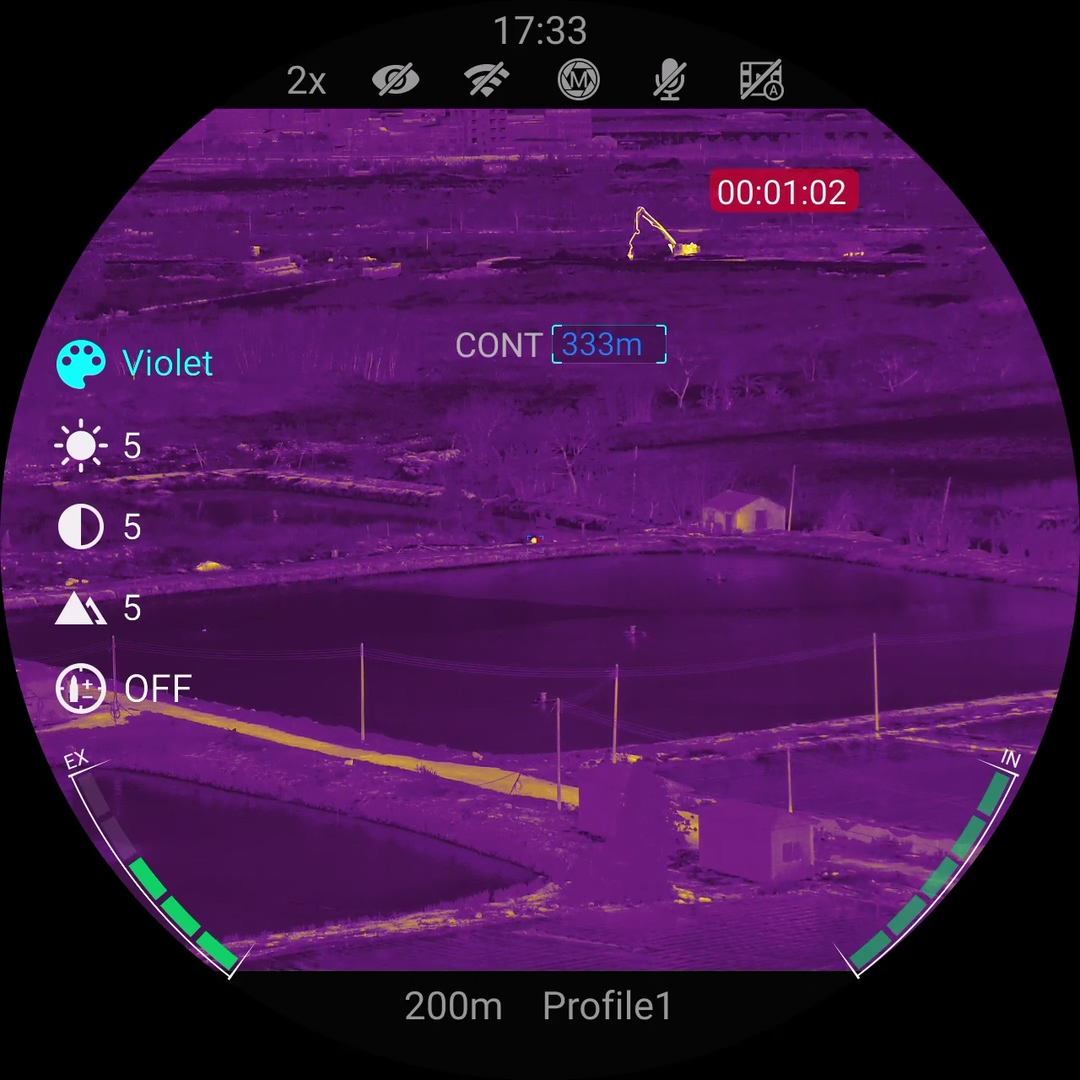

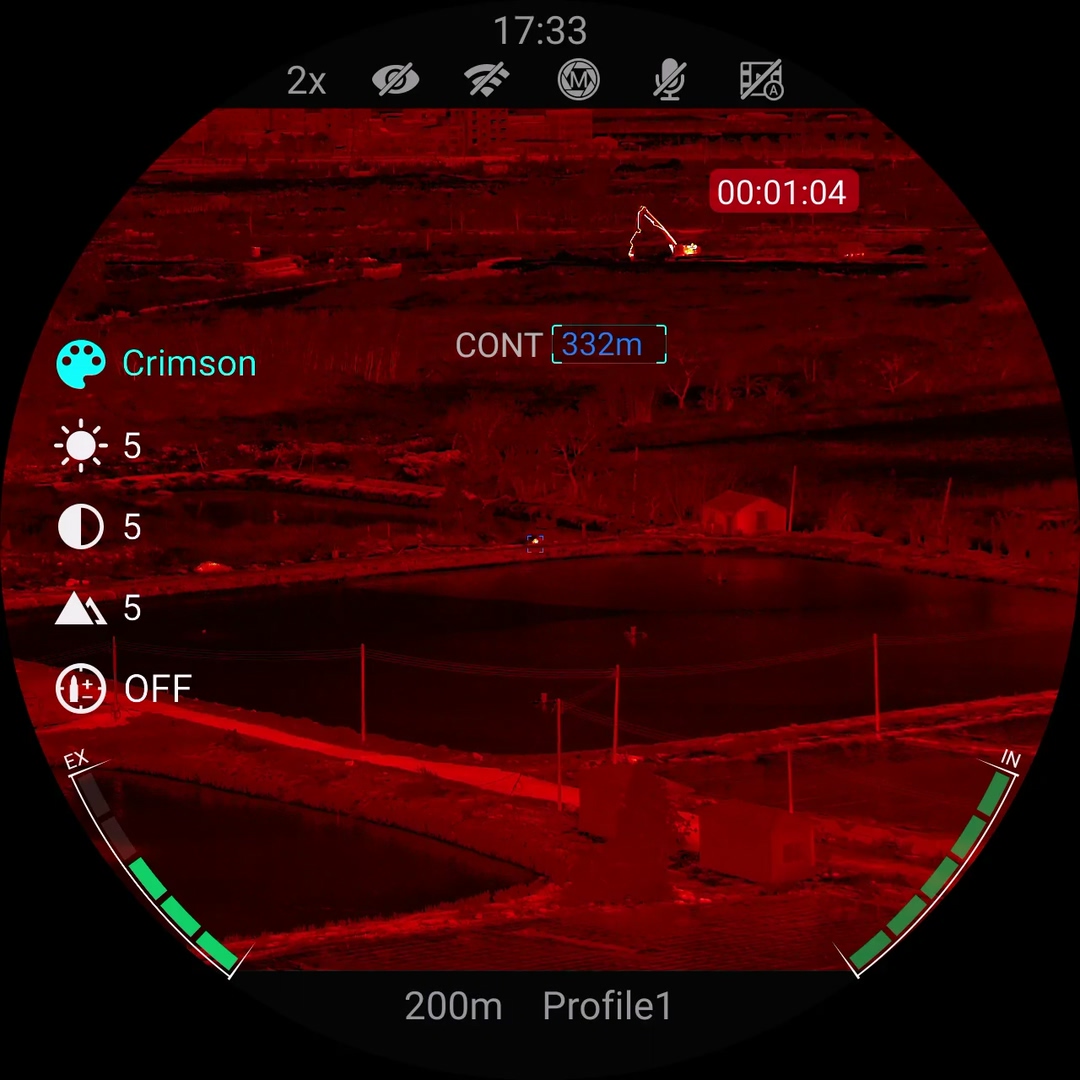

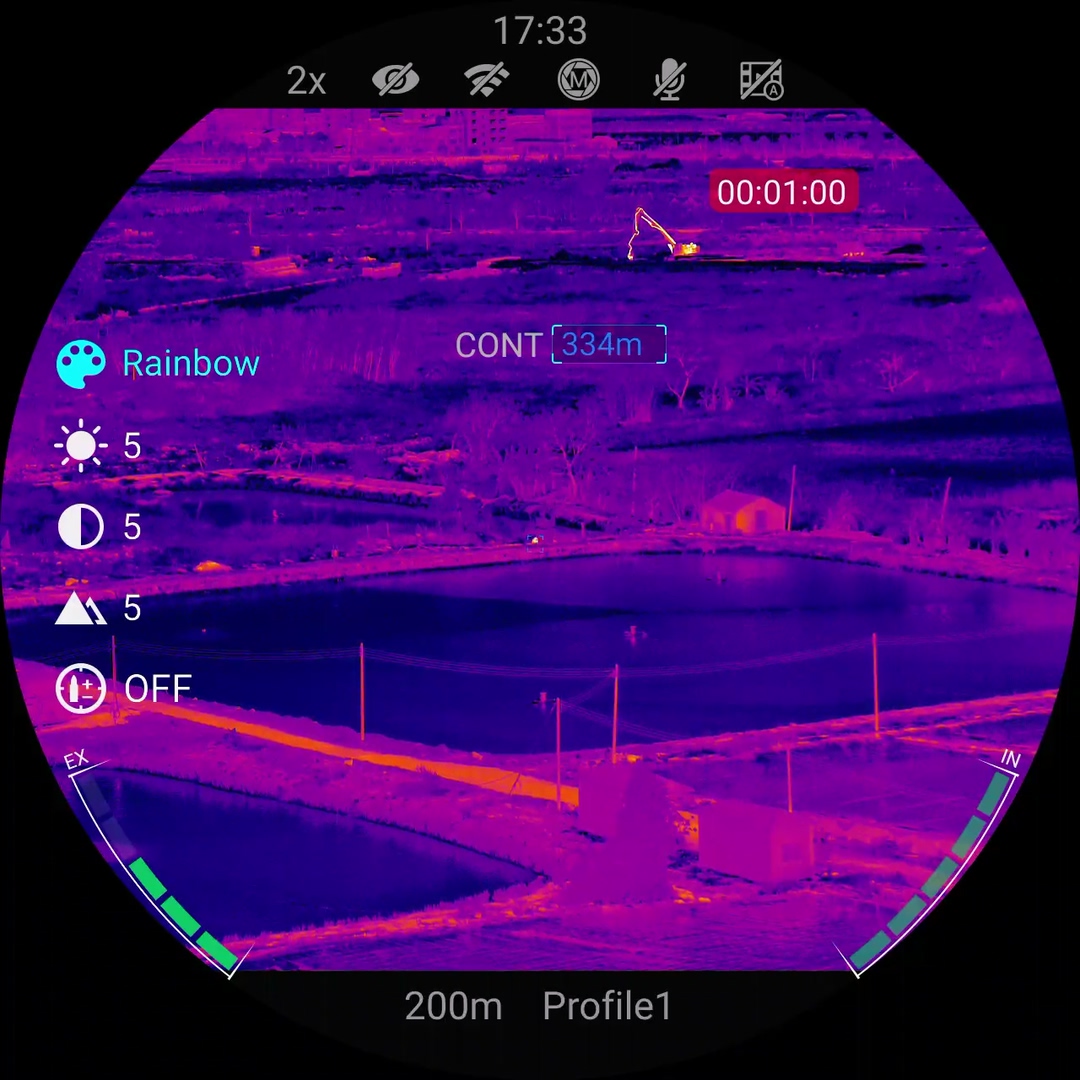

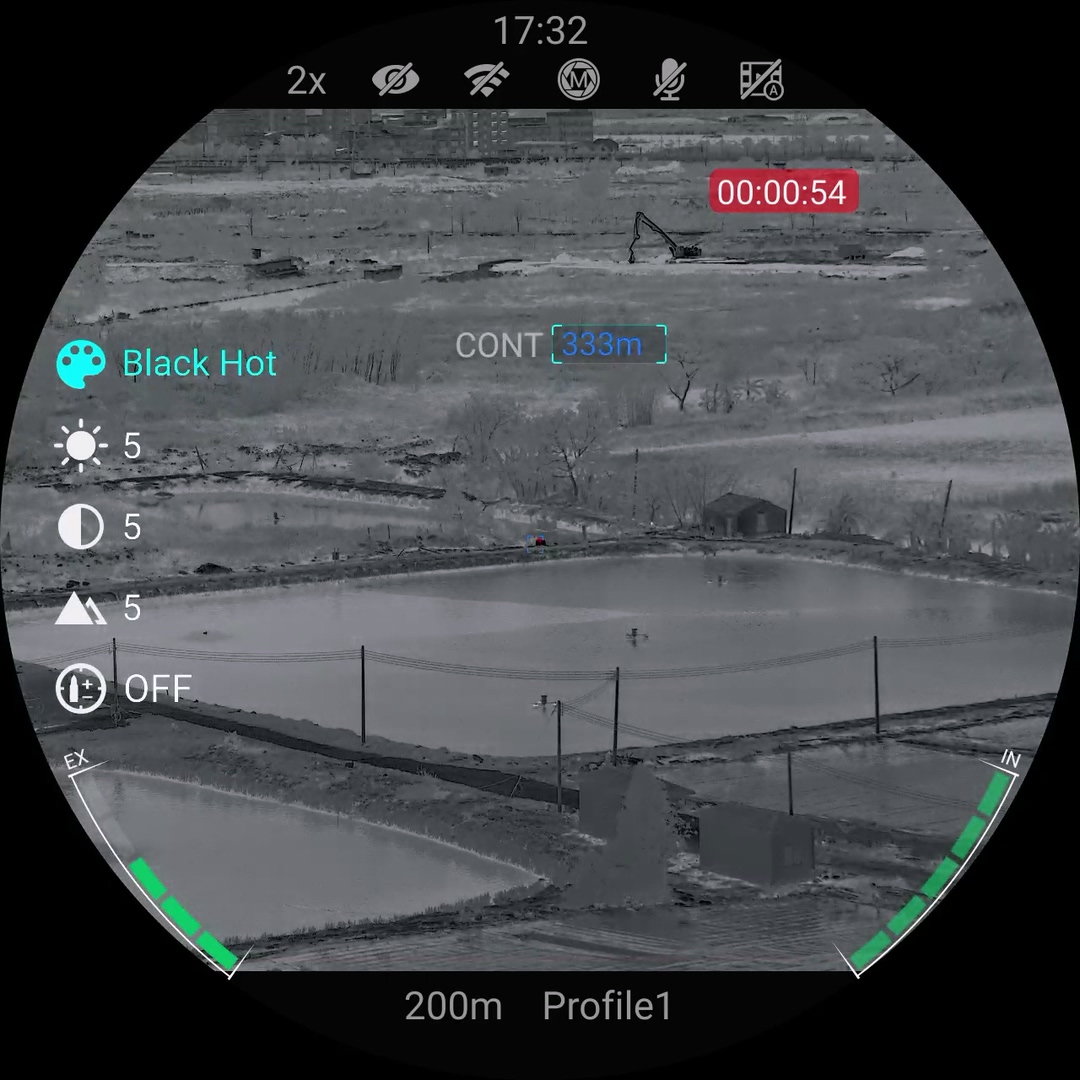

Demonstrate

Specification


Model

ST60L

Detector Type

VOX

Resolution, Pixel

1280×1024

Pixel Size, μm

12 μm

NETD, mK

≤15 mk

Frame Rate, Hz

50 Hz

Optical Characteristics

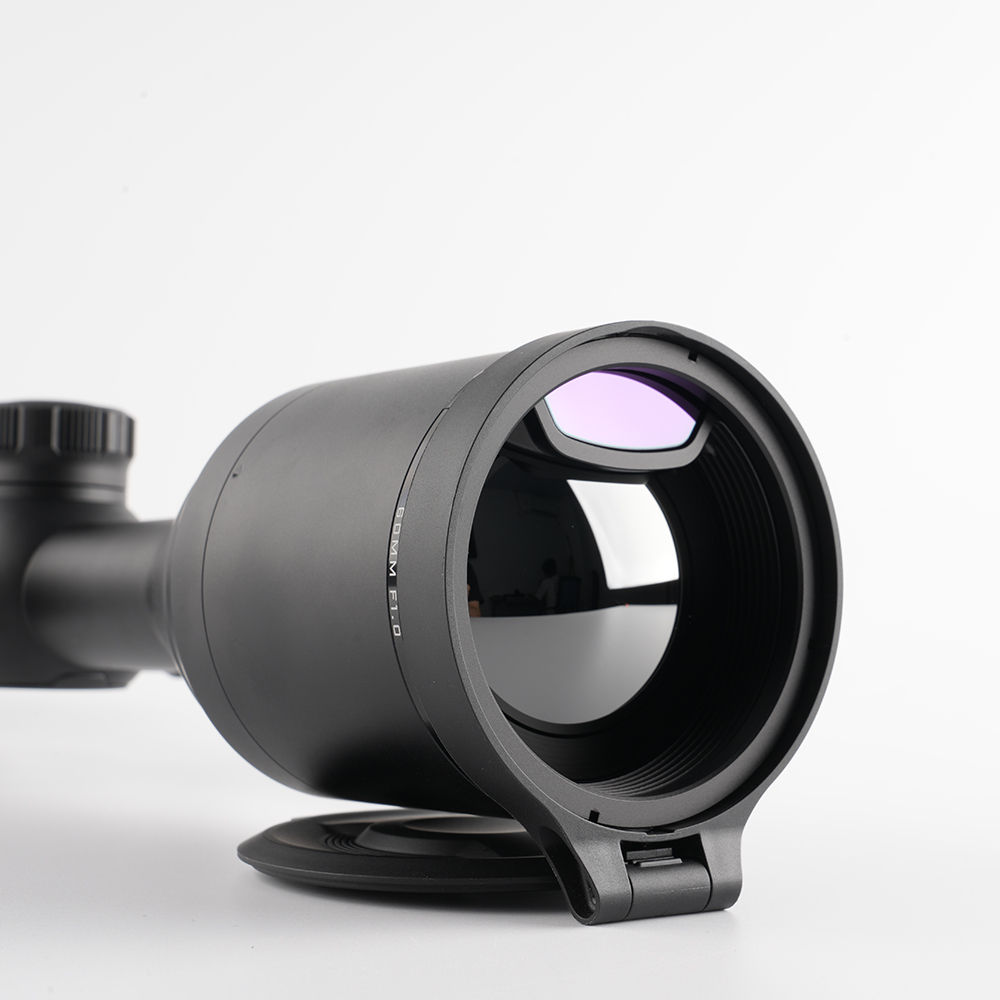

Objective lens, mm

60 mm

Magnification, x2 x

Eyepiece magnification, x

1 x ~3  x

Digital zoom, x

2 x ~ 24 x

Min Focus Distance, M

5 m / 5.468 yd

Exit pupil distance, mm

50 mm

Exit pupil Diameter, mm

8 mm

Field of View (H × V), degree

14.7°× 11.7°

Diopter, D

-5D~ + 5D

Detection range, m (Target size: 1.7 m × 0.5 m)

3100 m

Detection range, m (Vehicle: 2.3 m × 2.3 m)

5700 m

Rangefinder Characteristics

Wavelength,nm

905 nm

Measuring Range,M

1200 m

Measurement accuracy,m

1 m

Electrical Characteristics

Display Type

AMOLED

Resolution, pixels

2560×2560

WiFi Frequency,GHz

2.4 GHz

Video/Photo fomat

MP4 / JPG

Built-in memory,GB

64 GB

Power Supply,V

3.7 V

Battery type*QTY/Capacity, mA

Internal capacity:  4000 mAh, External: 18650

External power supply,V

5V 2A

Others Characteristics

Operating time (at t=22℃), hours

6 hrs

Operation  temperature, ℃

-20 ℃ ~ +50 ℃

Storage temperature, ℃

-30 ℃ ~ +60 ℃

Body material

Aluminum alloy casing

Degree of protection, IP code (IEC60529)

IP67

Seismic coefficient, joules

1000 g/ms

Dimension(L*W*H), mm/inch

390 mm×90 mm×71 mm

15.35 in×3.54 in×2.8 in

Weight(without battery), g/oz

1300 g / 45.86 oz
