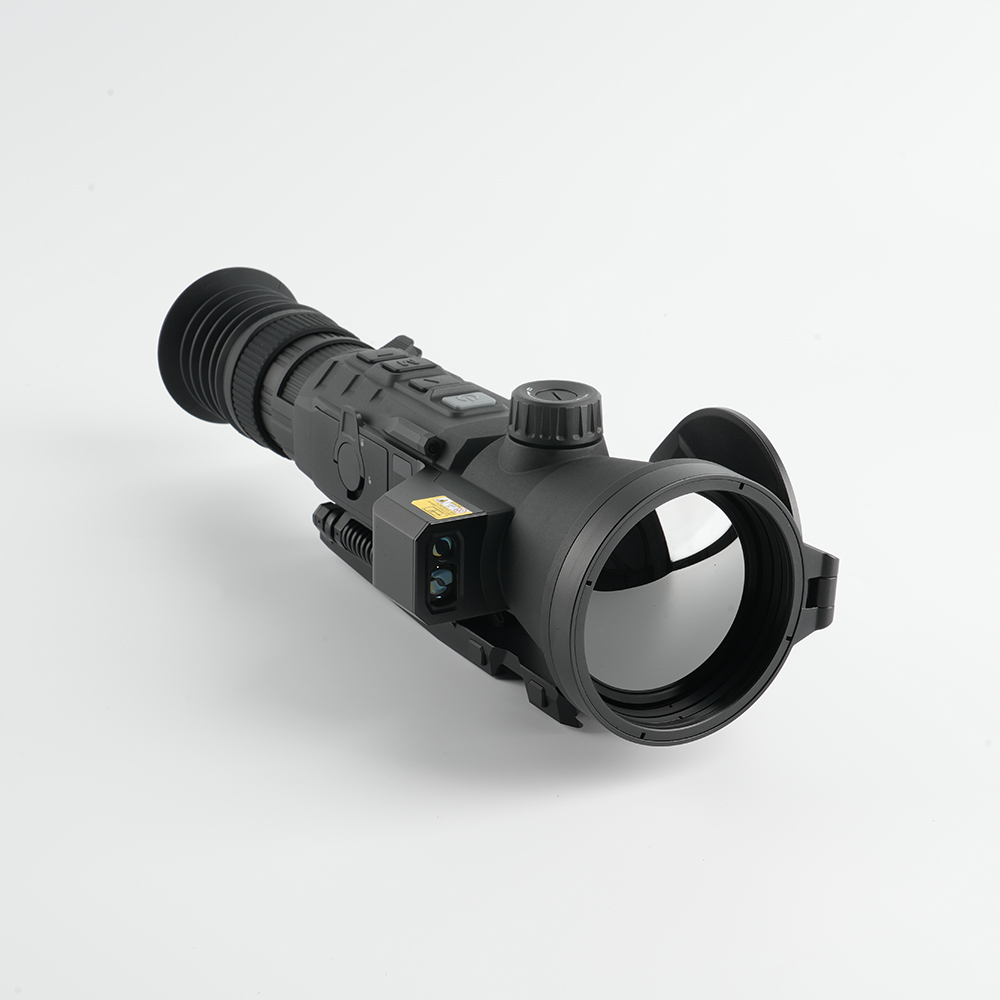

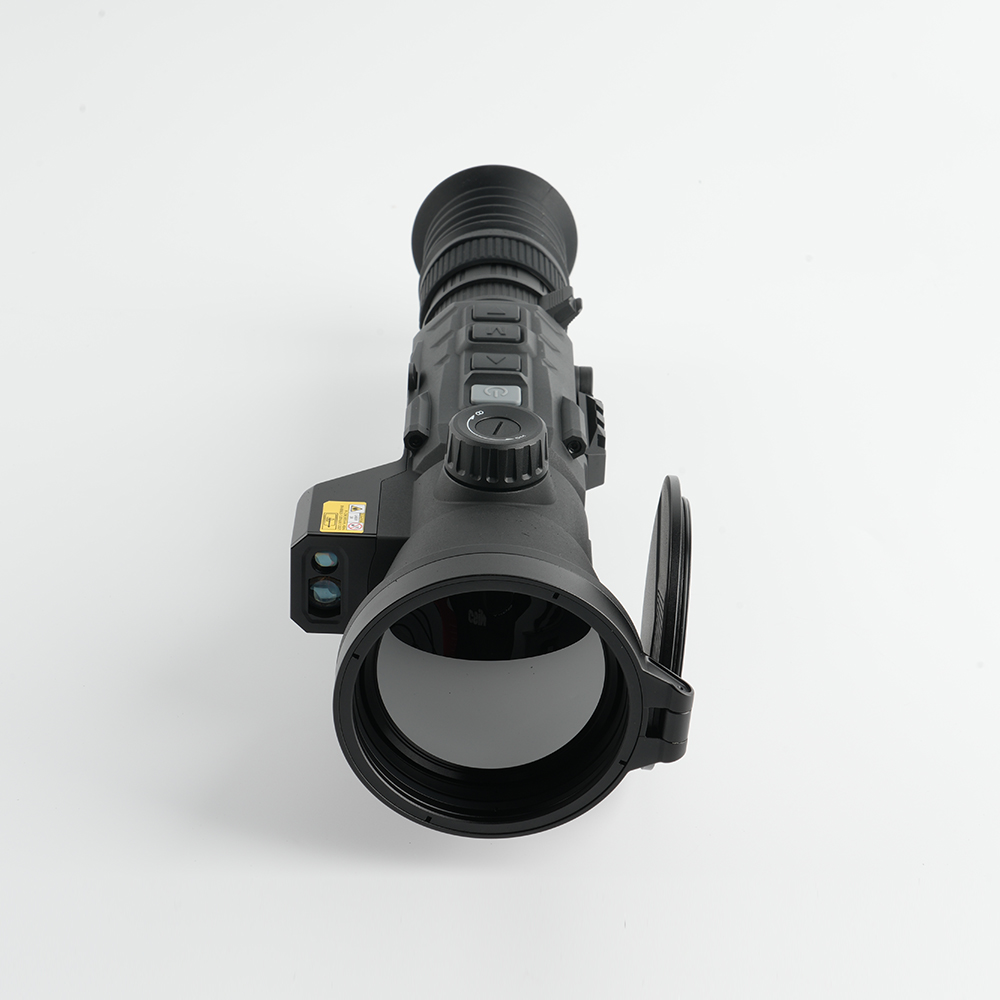

Longot TR75R | Thermal imaging sight
High-end thermal imaging aiming

TR75R

High-end thermal imaging aiming

60Hz image frame rate
    • 15mK NETD
    • 1200m Built-in LRF
    • Stepped digital zoom
    • HD 2560x2560 AMOLED display
    • High frame frequency:60hz
    • Ballistic Calculation
    • Recoil Activated Video function
    • Built-in memory, supporting photographing, video recording
    • Built-in Wi-Fi module, supporting APP connection
    • PIP (picture-in-picture) function
    • Pixel defect correction

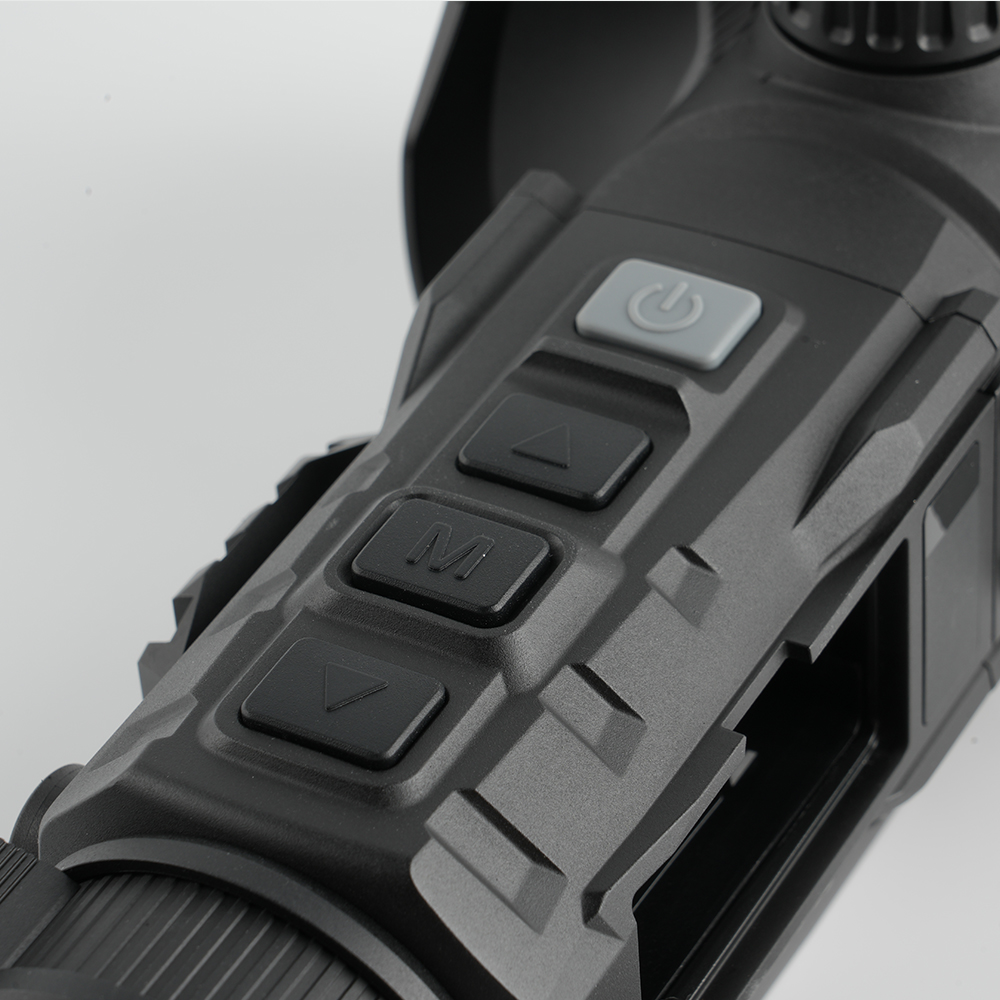

    • Convenient operation interface
SERVICE & SUPPORT   |    CONTACT US

Characteristics

Full name: Noise Equivalent Temperature Difference 15mK Explanation: Excellent thermal sensitivity. It can clearly capture faint heat sources hidden in complex environments, deliver sharp images even in foggy, rainy and dusty weather, and easily distinguish temperature differences of targets.

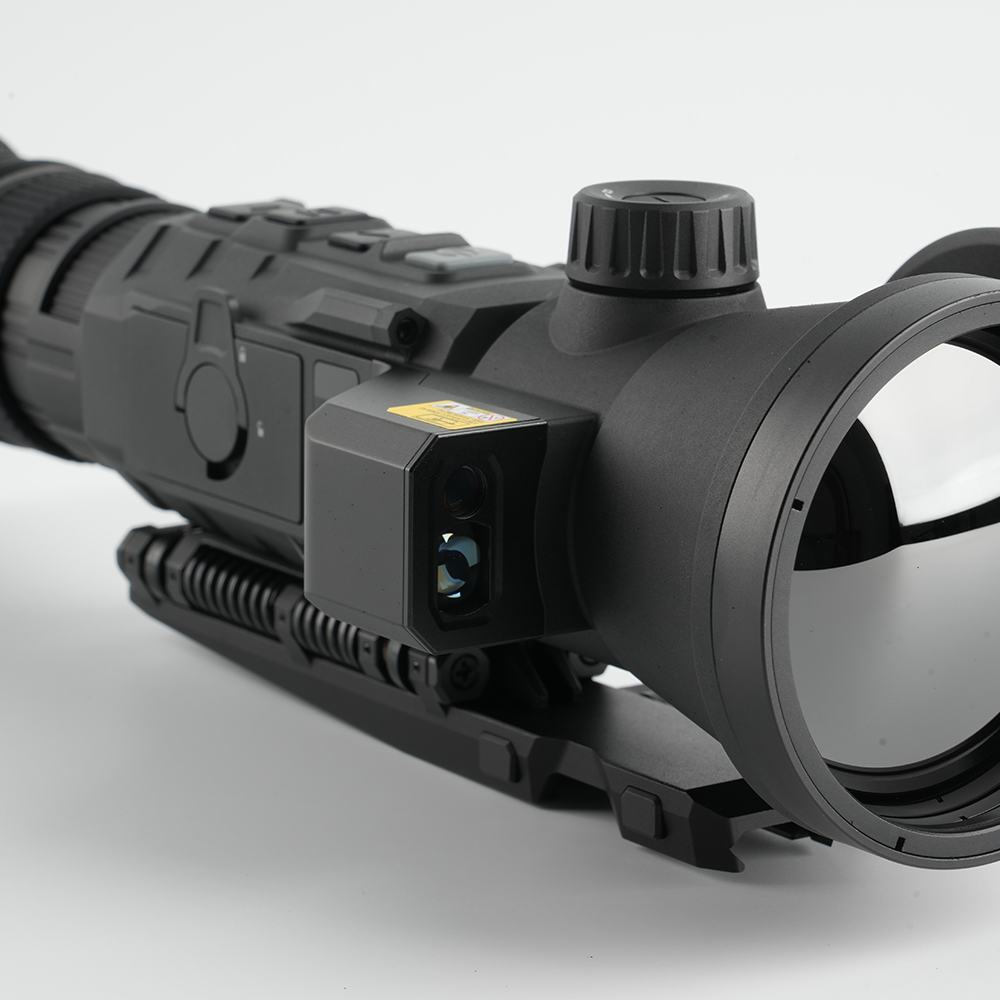

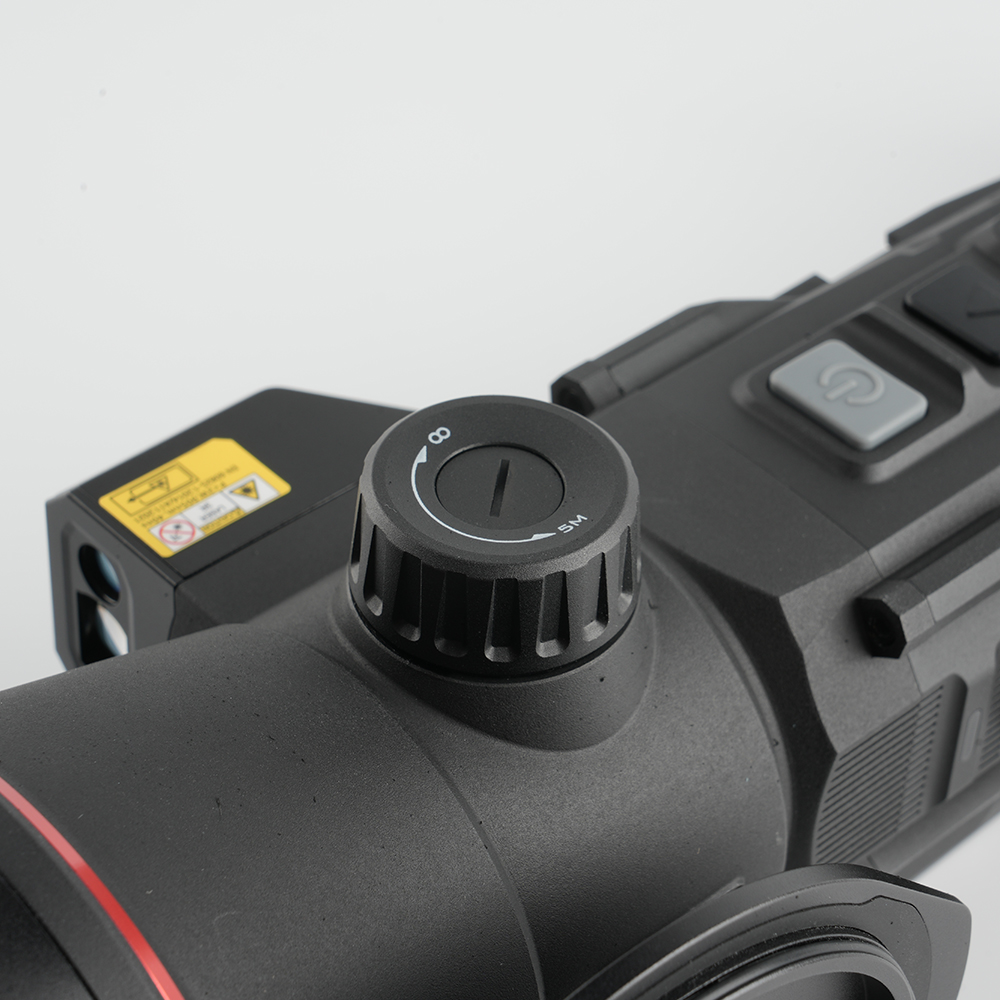

Full name: Built-in 1200m Laser Rangefinder Explanation: Integrated laser ranging module, maximum accurate ranging distance up to 1200 meters. No need for external auxiliary devices, quickly measure target distance to assist accurate aiming.
Explanation: Multi-level fixed gear digital zoom. Smooth and stable magnification switching, no image offset when zooming in, convenient to observe target details at long range.
Explanation: Ultra-high resolution square AMOLED screen. Features high contrast, delicate picture quality, clear display under strong light and wide viewing angle, bringing comfortable viewing experience.
xplanation: 60 frames per second high refresh rate. The screen presents ultra-smooth dynamic images, effectively eliminate ghosting and lag, ideal for tracking fast-moving targets.
xplanation: Professional ballistic computing function. Automatically calculate bullet drop and wind drift according to actual distance and environmental data, greatly improve long-distance shooting accuracy.

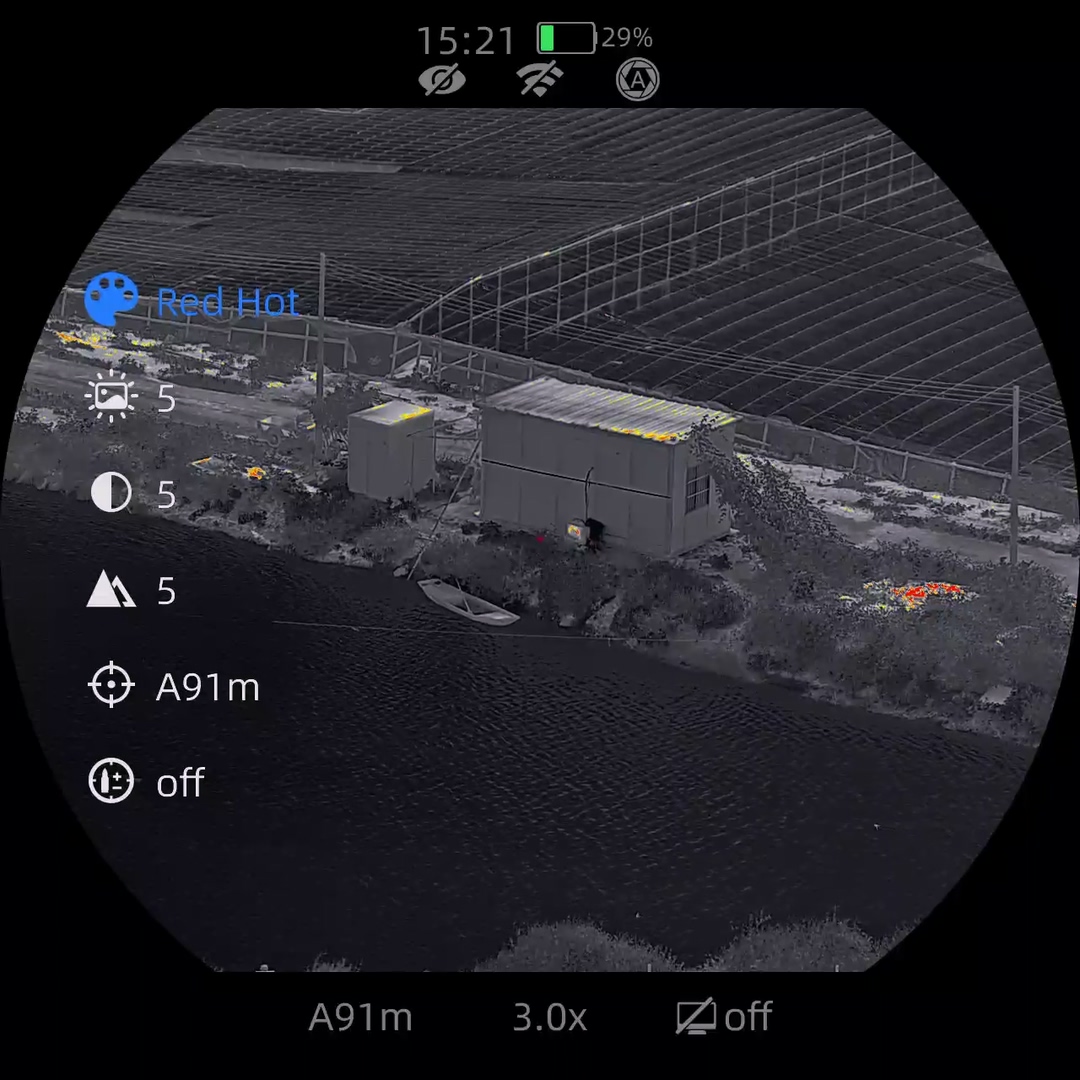

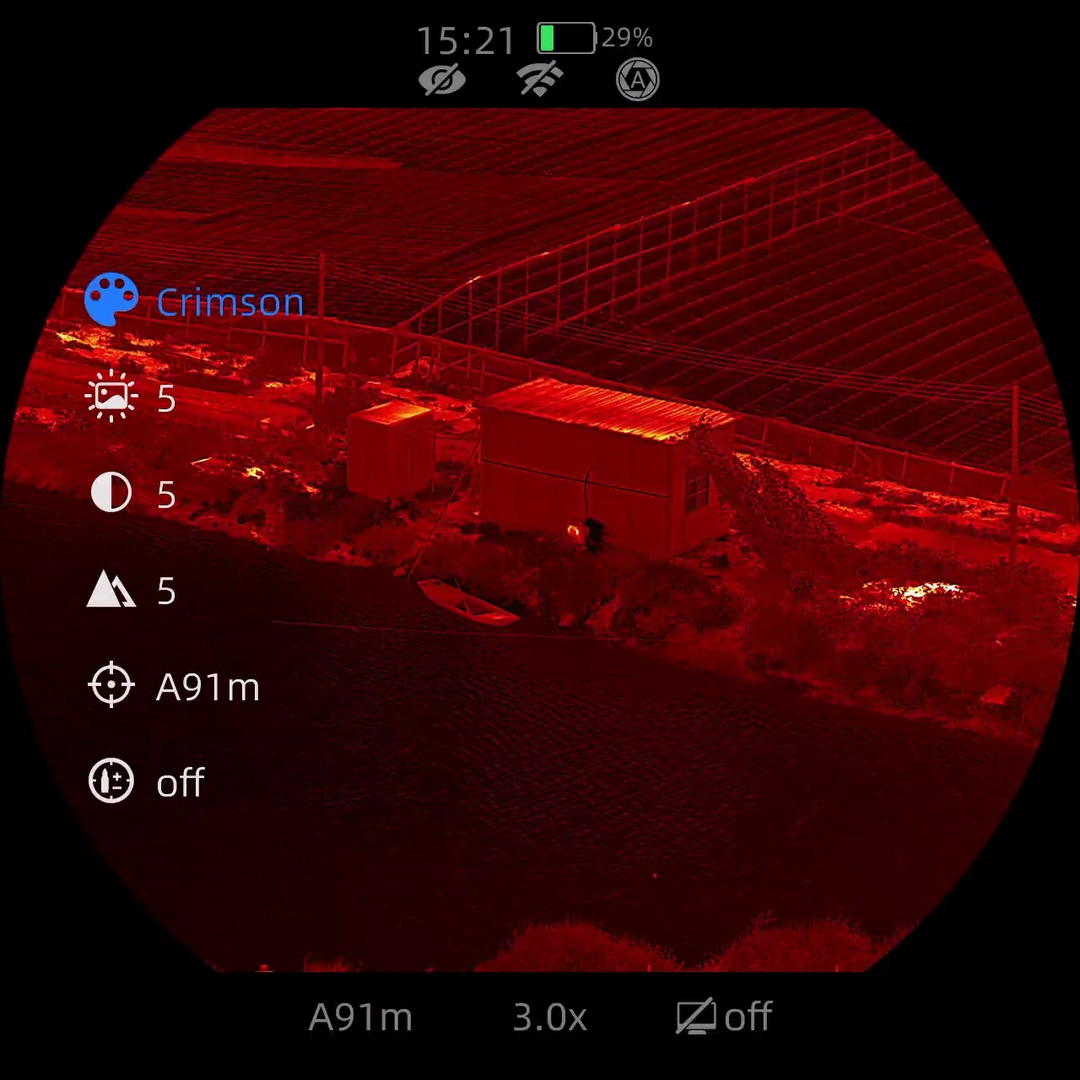

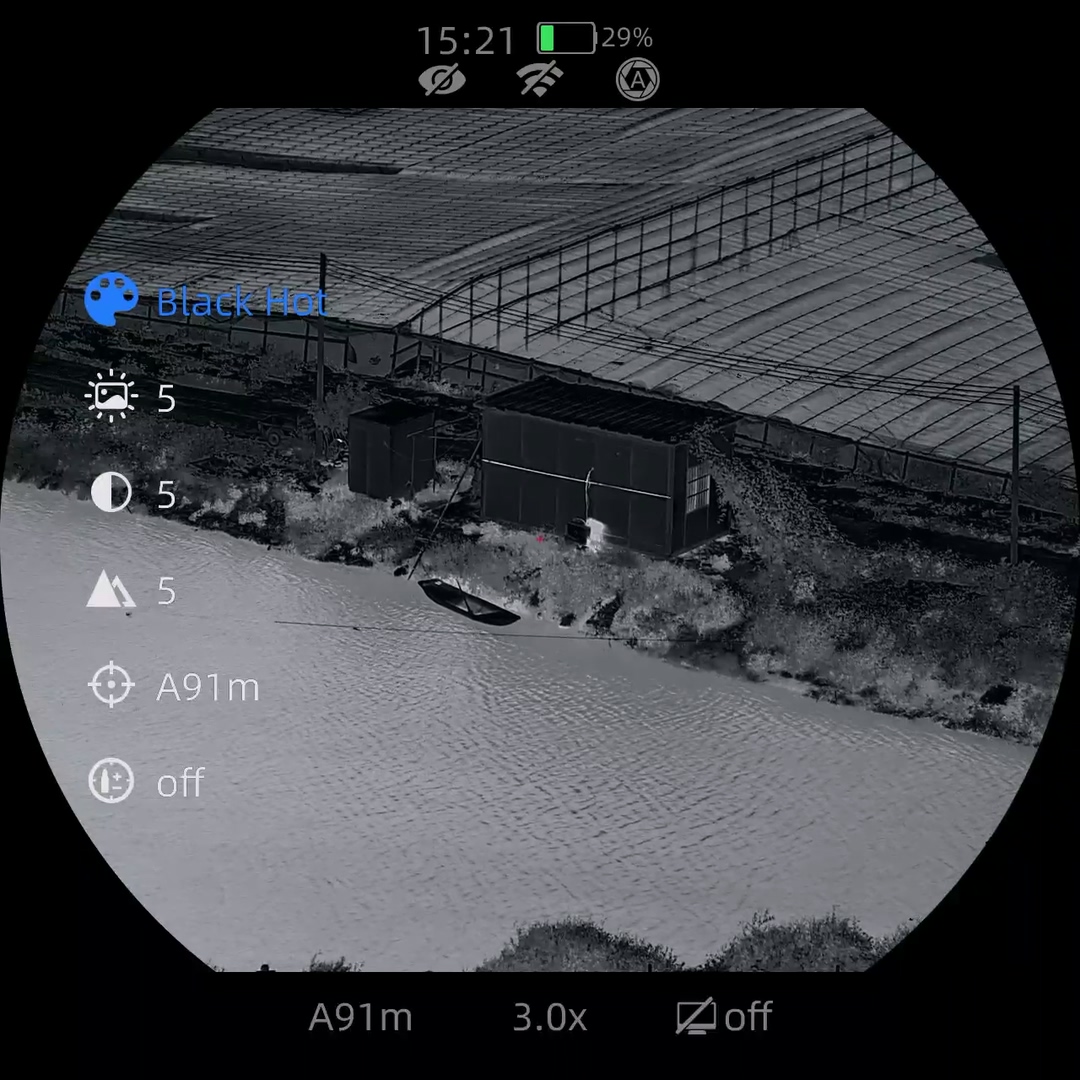

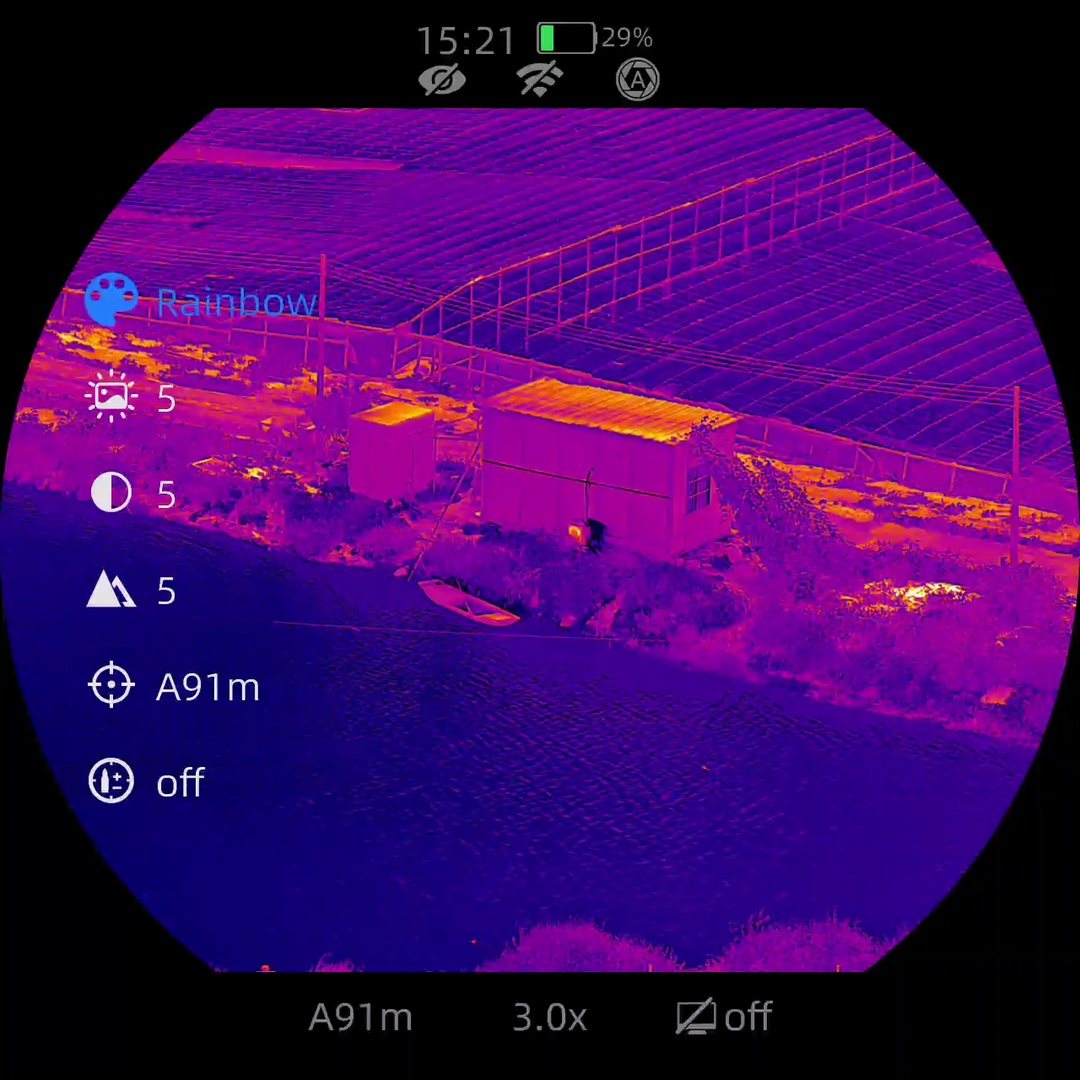

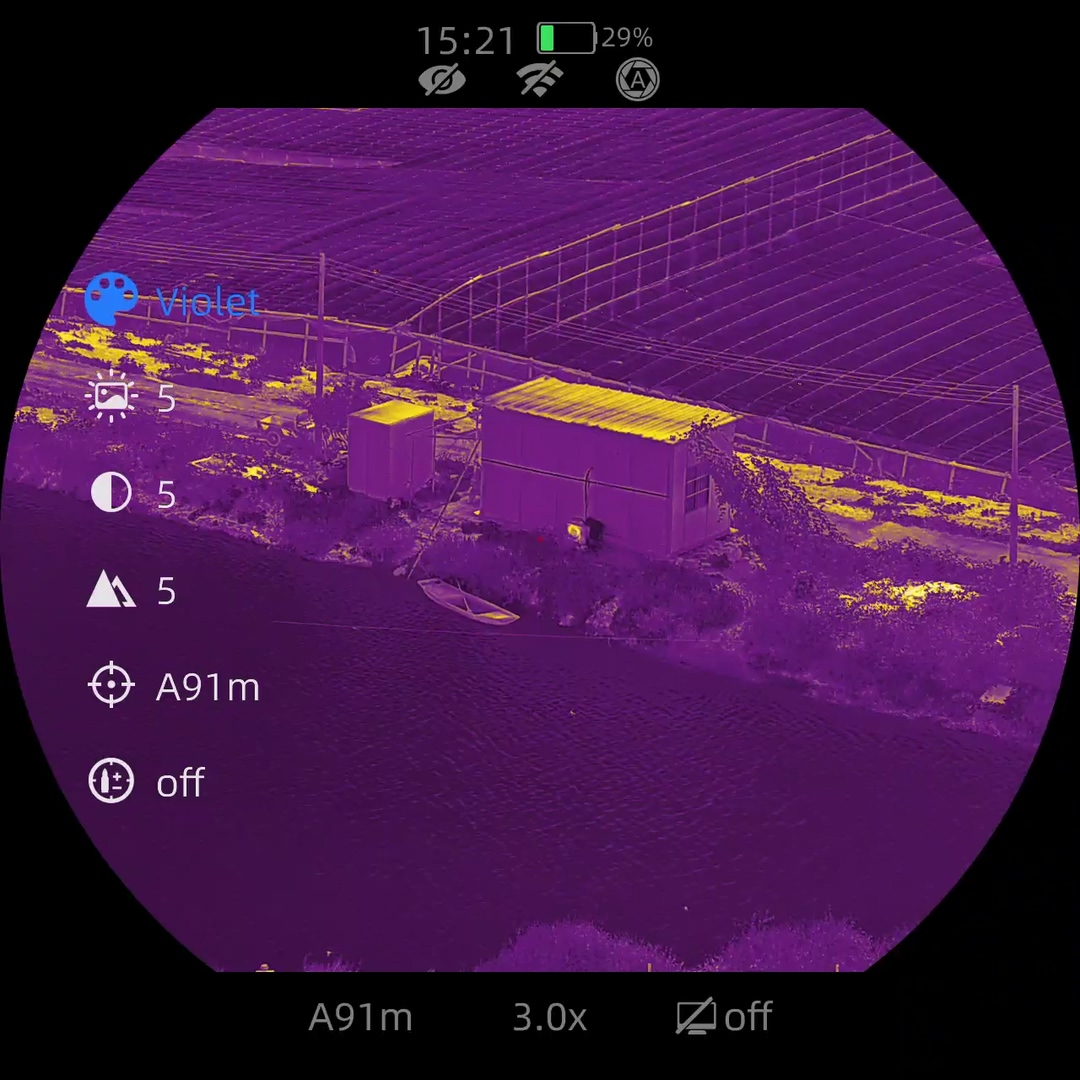

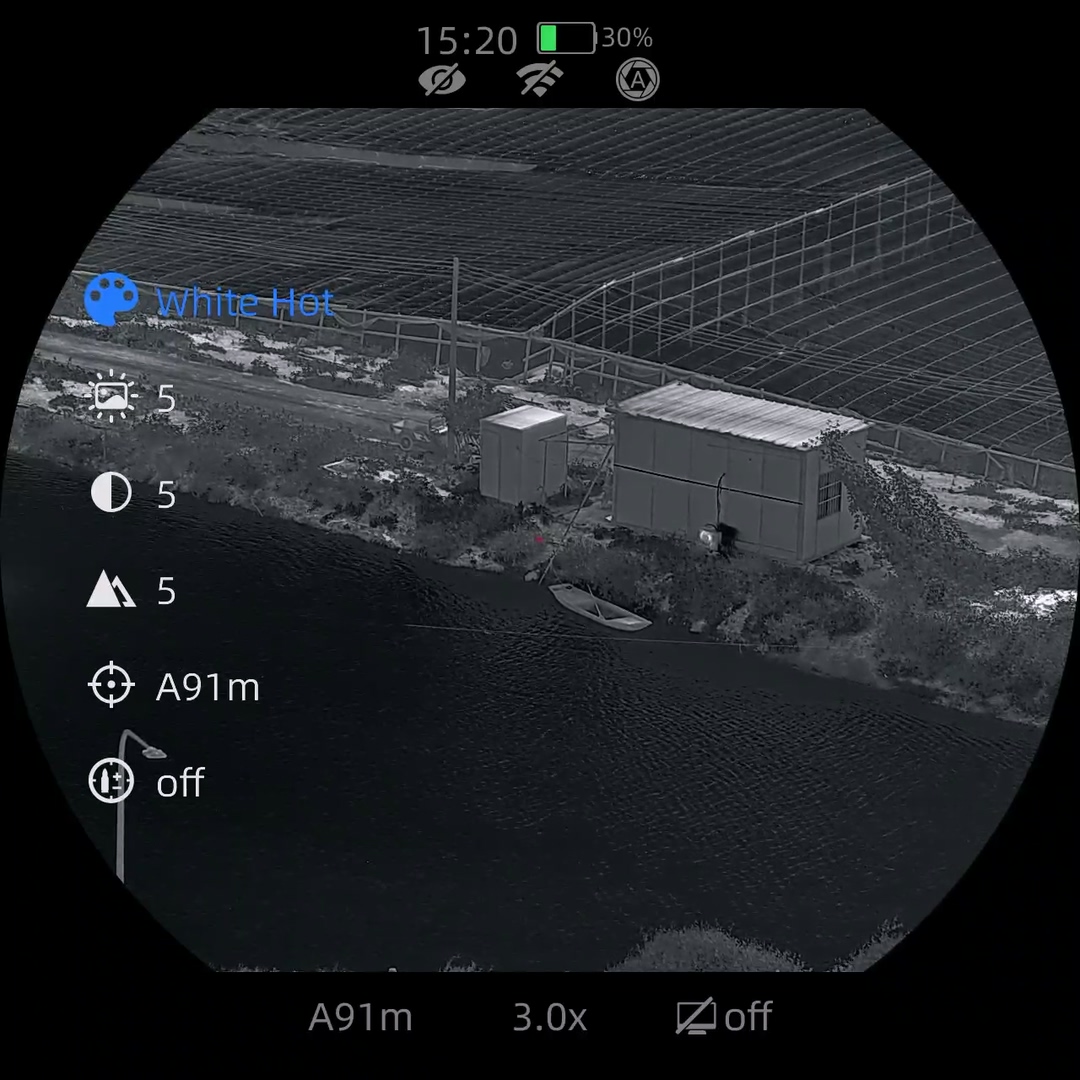

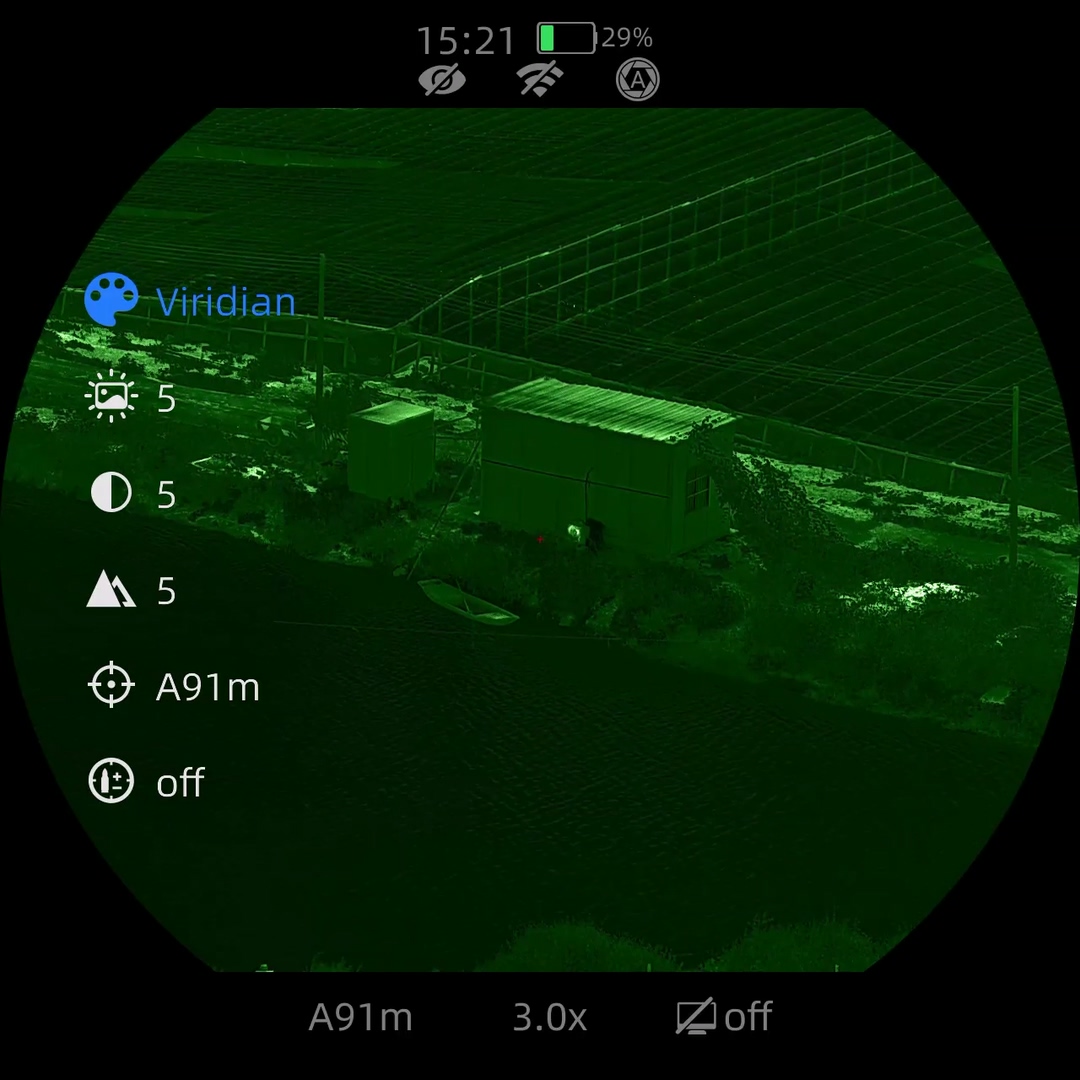

Demonstrate

Specification


Model
TR75R
Detector TypeVOX
Resolution, Pixel
1280×1024
Pixel Size, μm12 μm
NETD, mK≤15mk
Frame Rate, Hz60 hz
Optical Characteristics
Objective lens, mm
75 mm
Magnification, x3x
Digital zoom, x3x-30x stepless zoom, step 0.1x-0.3x
Min Focus Distance, M5 m
Exit pupil distance, mm80 mm
Exit pupil Diameter, mm23 mm
Field of View (H × V), degree11.7°×9.4°
Diopter, D-5D~+5D
Detection Range, m (Target size: 1.7m×0.5m)3896 m
Detection Range, m (Verhicle)7000 m
Rangefinder Characteristics
Wavelength,nm905nm
Measuring Range,M1200m
Measurement accuracy,m1m
Electrical Characteristics
Display Type
AMOLED
Resolution, pixels2560×2560
WiFi Frequency,GHz2.4 GHz
Video/Photo fomatJPG/MP4
Built-in memory，GB32 GB
Power Supply，V3.7V
Battery type*QTY/Capacity, mA

Lithium-ion battery pack IBP-1 / 4400mAh

External power supply，V5V2A
Others Characteristics
Operating time (at t=22℃）, hours

≥4.5h

Operation  temperature, ℃-20℃~+50℃
Storage temperature, ℃-30℃~+60℃
Body materialMagnesium alloy casing
Degree of protection, IP code (IEC60529)IP67
Seismic coefficient, joules1000g/ms
Dimension（L*W*H), mm/inch

342mm*116mm*93mm

Weight(without battery), g/oz1300g
