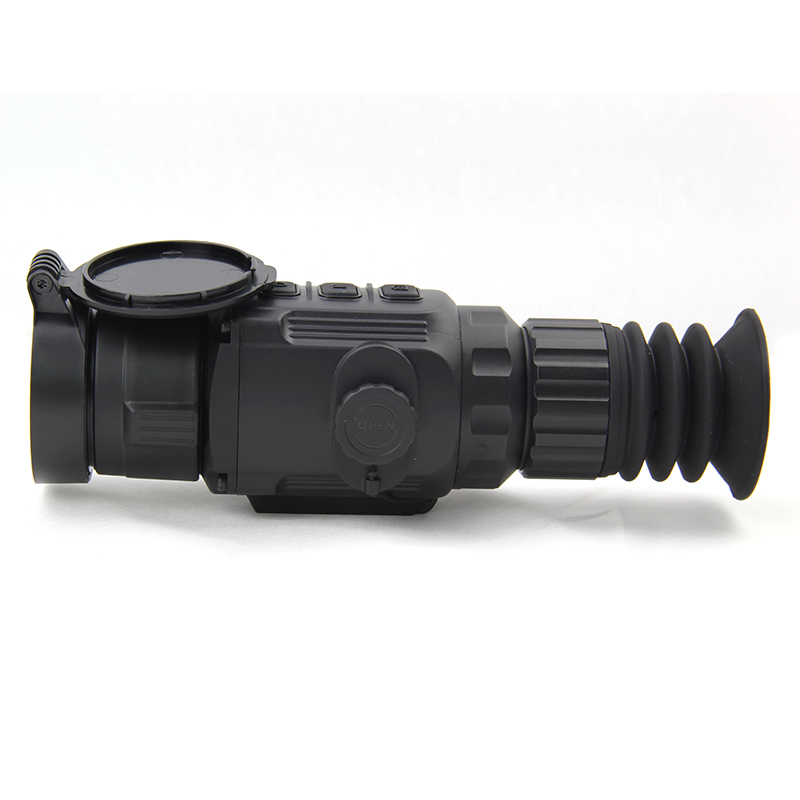

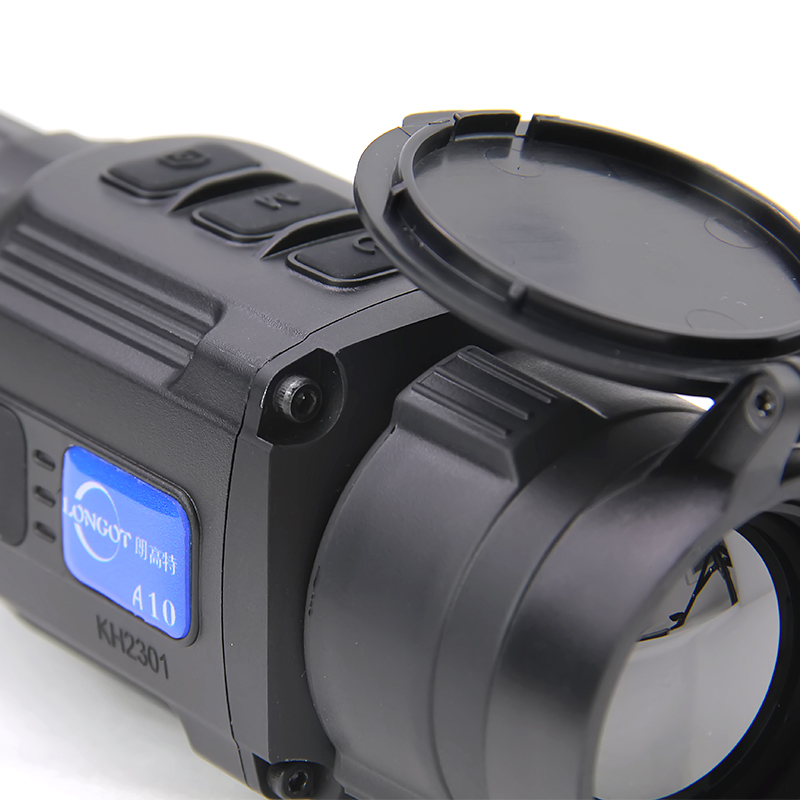

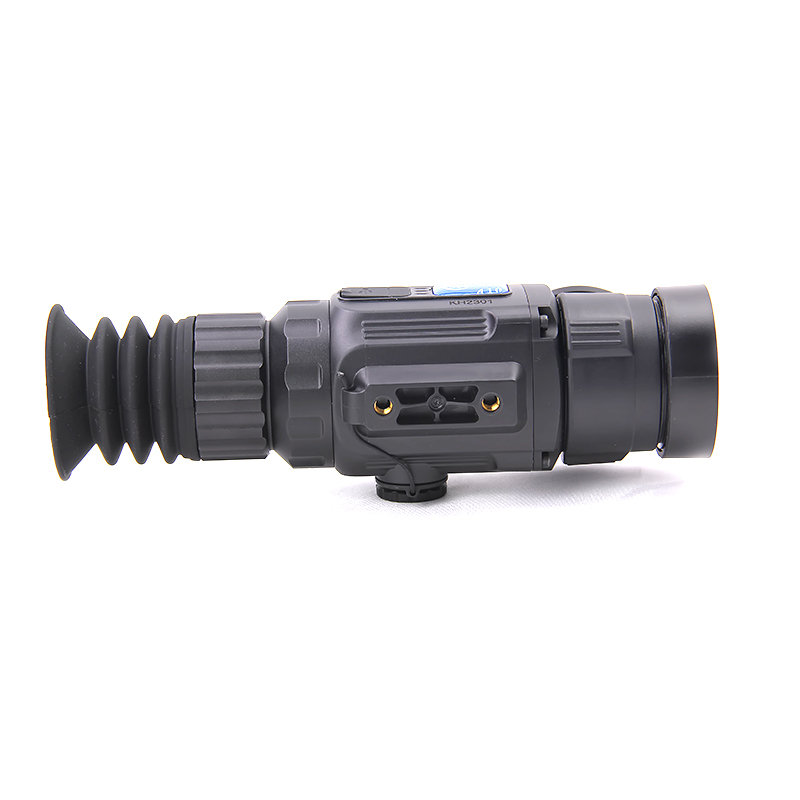

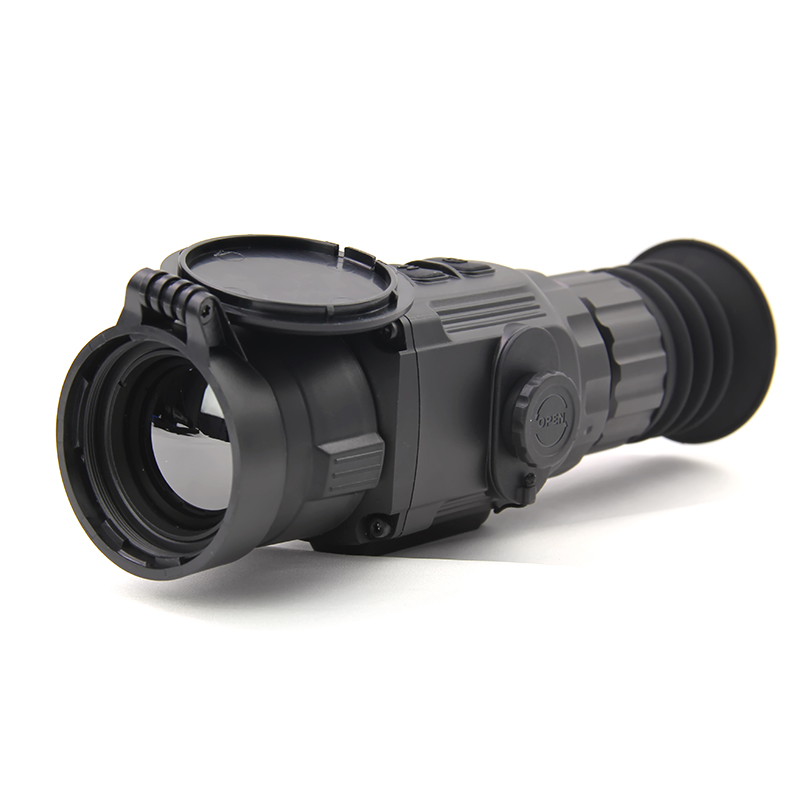

LGT A10


Longot A10 THERMAL SIGHTS


The wide view and easy operation will make your outdoor life get more fun

    ·12μm detector
    ·OLED display
    ·WI-FI&Photo&Video
    ·Physical distance measurement
    ·Msensor
    ·PIP
    ·1800m detective range
    ·IP66 waterproof

Application: Night Patrol Personal Security Search and Rescue Outdoor Adventure



Characteristics

Vanadium oxide sensor uses advanced passive infrared thermal imaging technology. Its 384*288 resolution with 50Hz frequency sensitivity detector offer experience excellent visual effects;
The image is smooth, high definition, highlighting target. The background is rich and the recognition is high. Different image modes can be switched according to different environments to achieve the effect of high recognition of the target is prominent;
Every machine has passed strict earthquake resistance test;
connect external display or power bank for long battery Life

Demonstrate

Application

Specification


Model

A10

Resolutio

384×288

Pixel size

12μm

NETD

≤40mk

Objective lens

35MM

FOV

7.5×5.7°

Display

OLED

Resolution

1024x768

Diopter adjustment

-5~+5

Magnifification

2.8-11.2

Battery

16340*2

Operation time

3.5H

IP protection

IP67

WIFI

Compass

Msensor

Range

Photos & Videos
Memory32GB

Detective range

1800M

Weight

<420g

Size

195×61×61mm
USB typeType C
